baler machines

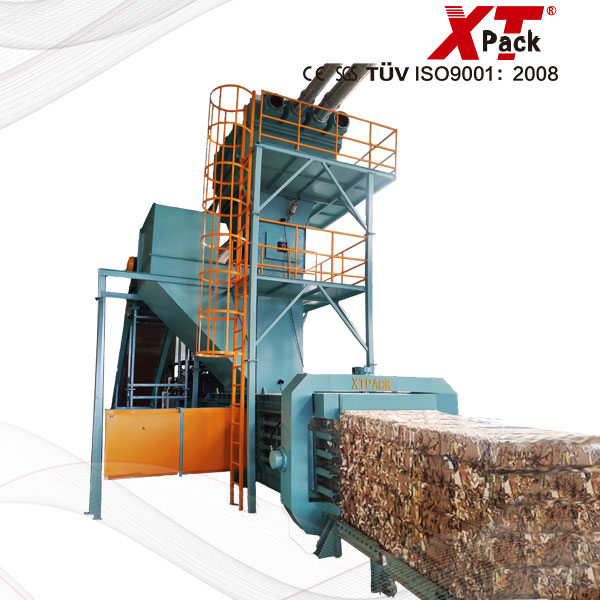

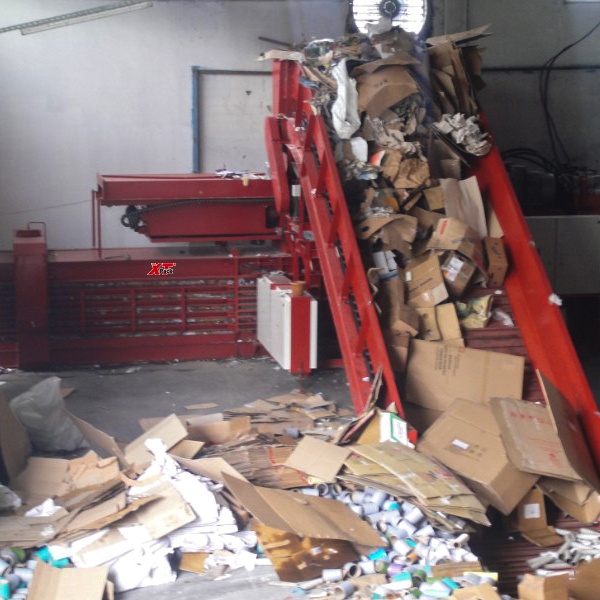

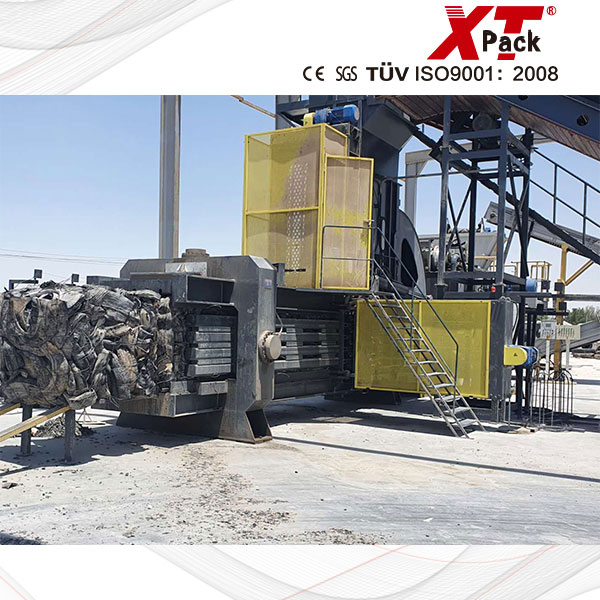

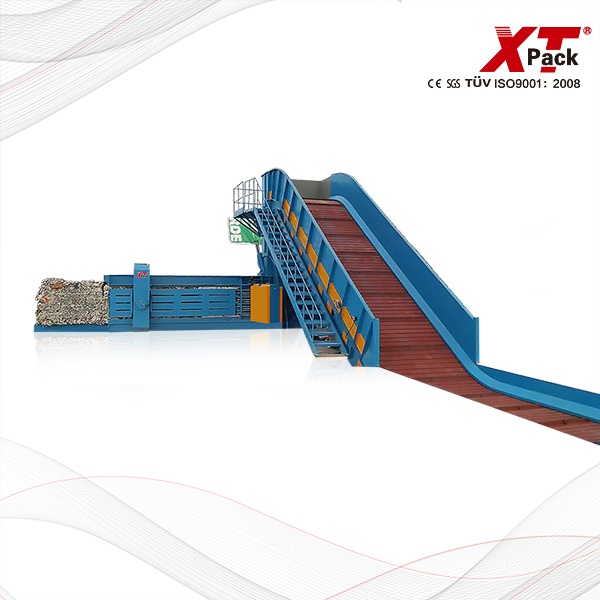

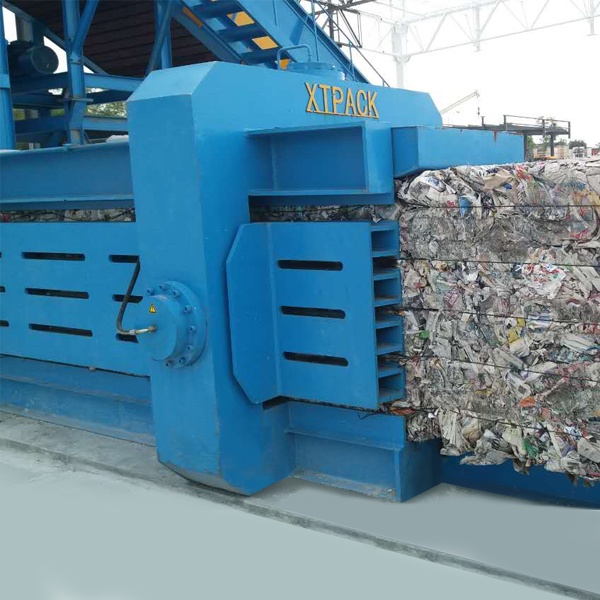

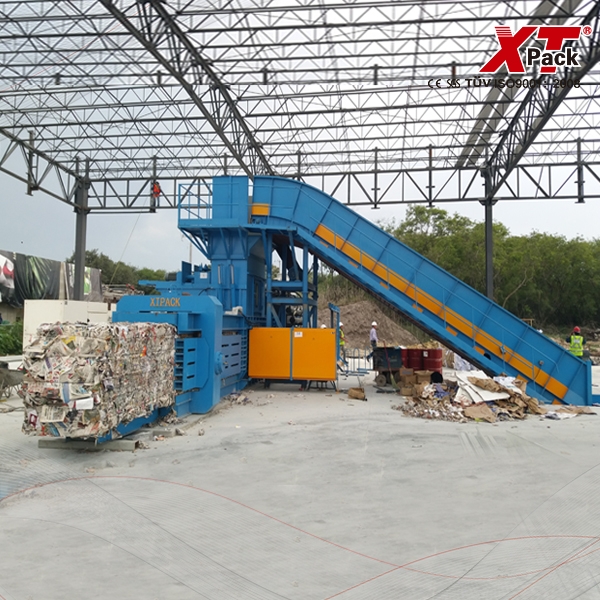

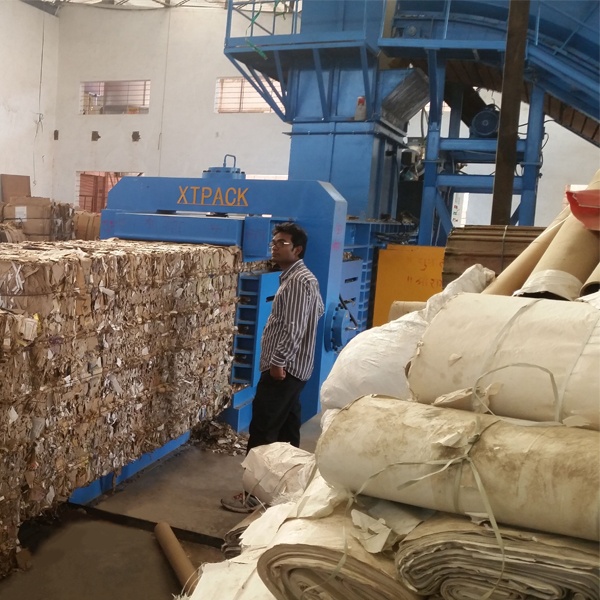

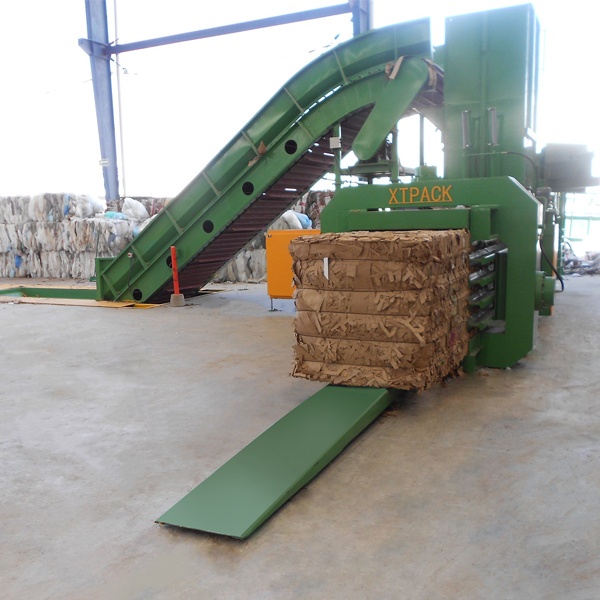

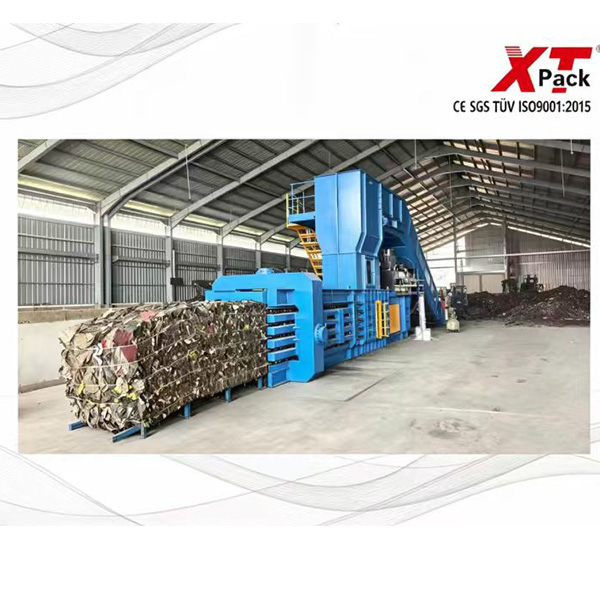

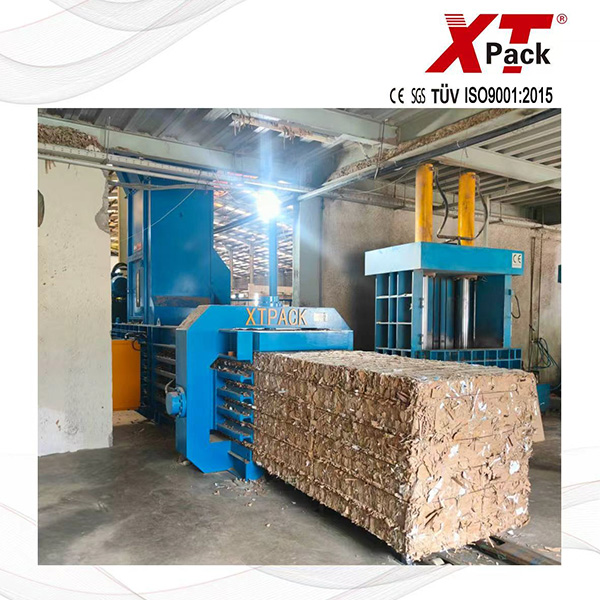

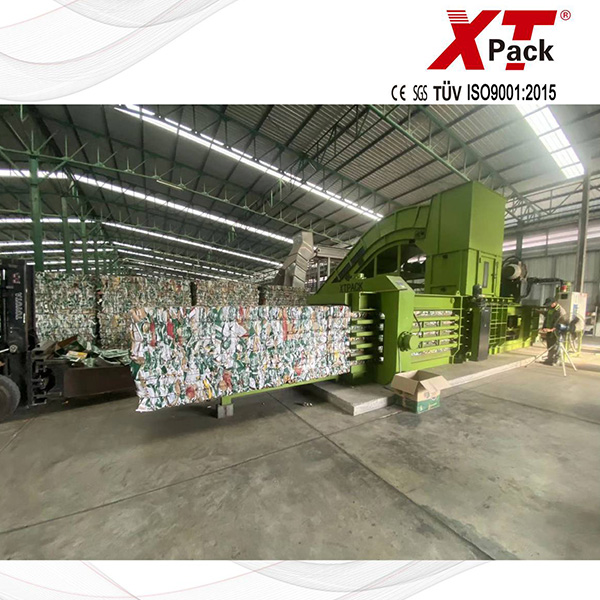

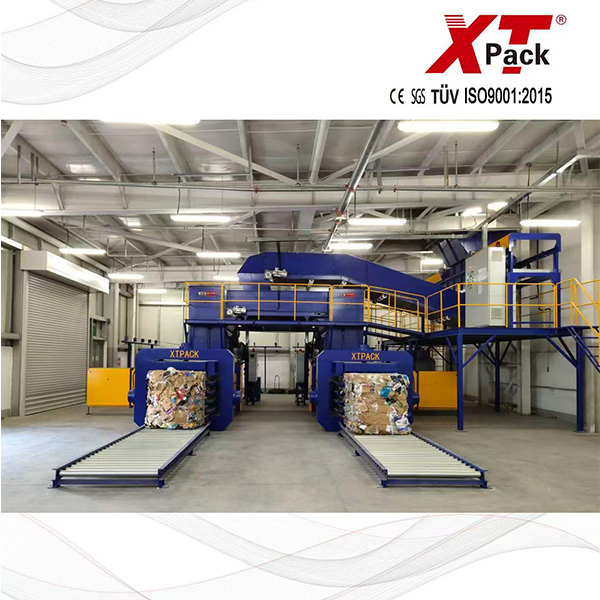

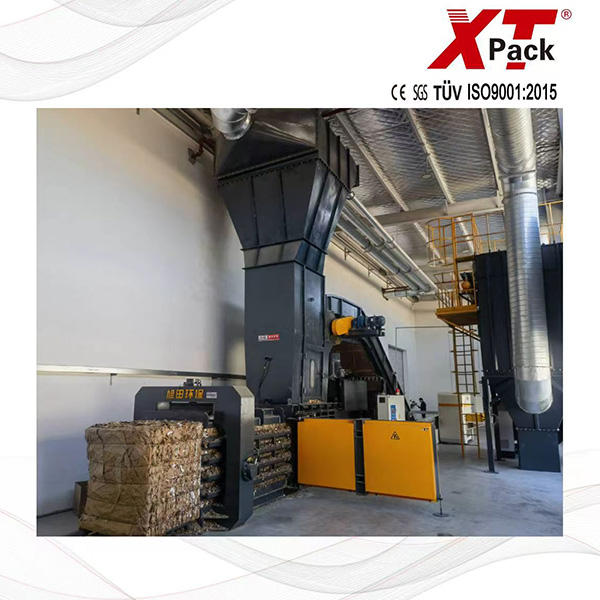

Large-sized Full Automatic Balers

Usage of Large-sized Full Automatic Balers

Specialized in recycling and compressing the loose materials like waste paper, cardboards/cartons, cartons trims, waste books, magazines, plastic film and straw etc.

Features of Large-sized Full Automatic Balers

  • Photoelectric switch activates baler when charge box is full
  • Unique double-cutting design of cutters  improves the cutting efficiency and lengthens the lifespan of the cutters
  • Particular anti-slide design of the machine makes nicer bales
  • Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
  • Equipped with rapid automatic tying system, easy for cleaning and maintaining
  • Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
  • Automatic tension system ensures “brick-like” bales on all loose materials.
  • Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
  • Automatically detect and show the errors of the machine which improve the machine inspection efficiency
  • International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
  • The press heads are specially processed by planomiller, ensures the precise running of the ram
  • Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
  • The heavy duty machine body makes sure only flat ground is required by the installation
Model XTY-1000W11080-60 XTY-1000W11080L-60 XTY-1000W110110-60 XTY-1000W110110L-60
Pressure 100tons 100tons 100tons 100tons
Main Motor Power 45kw 45kw 45kw 45kw
Cooling System air cooler /

water cooler

air cooler /

water cooler

air cooler /
water cooler
air cooler /

water cooler

< Cycle Time (unload) 14s 16s 14s 16s
Oil Reservoir 1600L 1600L 1600L 1600L
Number of Belting 4lines 4lines 5lines 5lines
Wire Size Ø3.0-3.2 Ø3.0-3.2 Ø3.0-3.2 Ø3.0-3.2
Feed Opening Size

(L*W)

1600*1050mm 1800*1050mm 1600*1050mm 1800*1050mm
Chamber Size

(L*W*H)

2100*1100*800mm 2400*1100*800mm 2100*1100*1100mm 2400*1100*1100mm
Bale Size

(L*W*H, L is adjustable)

L*1100*800mm L*1100*800mm L*1100*1100mm L*1100*1100mm
Bale Density (OCC) 450-550kgs/m3 450-550kgs/m3 450-550kgs/m3 450-550kgs/m3
Throughput

(30-60kgs/m3)

5-9tons/h 5-10tons/h 6-11tons/h 6-12tons/h
Machine Weight 15tons 16tons 17tons 18tons
Machine Overall

Dimension

8500*4000*4200mm 9100*4000*4200mm 8700*4000*4200mm 9300*4000*4200mm
Feeding Device Conveyor Conveyor Conveyor Conveyor
Conveyor
Feeding Width 1600mm 1800mm 1800mm 1600mm
Speed 12m/min 12m/min 12m/min 12m/min
Power 7.5KW 7.5KW 7.5KW 7.5KW
Weight 6tons 7tons 6tons 7tons
Overall Dimension 11000*2100*5200mm 11000*2300*5200mm 11000*2100*5200mm 11000*2300*5200mm
Scatter (Used for the machines that compress the newspaper)
Motor 11KW

Model XTY-1250W110110-75 XTY-1250W110110L-75 XTY-1250W110125-75 XTY-1250W110125L-75
Pressure 125tons 125tons 125tons 125tons
Main Motor Power 55kw 55kw 55kw 55kw
Cycle Time (unload) 15s 17s 15s 17s
Oil Reservoir 1900L 1900L 1900L 1900L
Number of Belting 5lines 5lines 5lines 5lines
Wire Size Ø3.0-3.4 Ø3.0-3.4 Ø3.0-3.4 Ø3.0-3.4
Feed Opening Size

(L*W)

1600*1050mm 1800*1050mm 1600*1050mm 1800*1050mm
Chamber Size(L*W*H) 2100*1100*1100mm 2400*1100*1100mm 2100*1100*1250mm 2400*1100*1250mm
Bale Size

(L*W*H, L can be adjustable)

L*1100*1100mm L*1100*1100mm L*1100*1250mm L*1100*1250mm
Bale Density (OCC) 400-500kgs/m3 400-500kgs/m3 400-500kgs/m3 400-500kgs/m3
Throughput
 (30-60kgs/m3)
7-13tons/h 7-14tons/h 8-15tons/h 8-16tons/h
Machine Weight 19tons 20tons 21tons 22tons
Machine Overall Dimension 9000*4100*4200mm 9600*4100*4200mm 9000*4100*4200mm 9600*4100*4200mm
Feeding Device Conveyor Conveyor Conveyor Conveyor
Conveyor
Feeding Width 1600mm 1800mm 1800mm 1600mm
Speed 12m/min 12m/min 12m/min 12m/min
Power 7.5KW 7.5KW 7.5KW 7.5KW
Weight 6tons 7tons 6tons 7tons
Overall Dimension 11000*2100*5200mm 11000*2300*5200mm 11000*2100*5200mm 11000*2300*5200mm
Scatter (Used for the machines that compress the newspaper)
Motor 11KW

Model XTY-1500W110110-150 XTY-1500W110125-150 XTY-1500W110110L-180 XTY-1500W110125L-180
Pressure 150tons 150tons 150tons 150tons
Main Motor Power 55kw*2 55kw*2 45kw*3 45kw*3
Cooling System water cooler water cooler water cooler water cooler
Cycle Time (unload) 12s 12s 11s 11s
Oil Reservoir 2600L 2600L 3500L 3500L
Number of Belting 5lines 5lines 5lines 5lines
Wire Size Ø3.4-3.6 Ø3.4-3.6 Ø3.4-3.6 Ø3.4-3.6
Feed Opening Size (L*W) 2000*1050mm 2000*1050mm 2200*1050mm 2200*1050mm
Chamber Size

(L*W*H)

2600*1100*1100mm 2600*1100*1250mm 2800*1100*1100mm 2800*1100*1250mm
Bale Size

(L*W*H, L can be adjustable)

L*1100*11000mm L*1100*250mm L*1100*1100mm L*1100*1250mm
Bale Density (OCC) 550-600kgs/m3 550-600kgs/m3 550-600kgs/m3 550-600kgs/m3
Throughput (30-60kgs/m3) 15-20tons/h 17-25tons/h 19-28tons/h 20-30tons/h
Machine Weight 30tons 32tons 34tons 35tons
Machine Overall

Dimension

11600*4200*6000mm 11600*4200*6000mm 12000*4200*6000mm 12000*4200*6000mm
Feeding Device Conveyor Conveyor Conveyor Conveyor
Conveyor
Feeding Width 2000mm 2000mm 2200mm 2200mm
Speed 12m/min 0-12m/min 0-12m/min 0-12m/min
Power 11KW 11KW 11KW 11KW
Weight 14tons 14tons 14tons 14tons
Overall Dimension 18000*2500*7200mm 18000*2500*7200mm 18000*2500*7200mm 18000*2500*7200mm
Scatter (Used for the machines that compress the newspaper)
Motor 15KW

Contact now

Related Equipment

Large, Medium and Small sized Semi-Automatic Balers With Closed Gate

Usage of Large, Medium and Small sized Semi-Automatic Balers With Closed GateSpecialized in recycling and comp...

Semi-Automatic Balers With Open Gate

Usage of Semi-Automatic Balers With Open Gate Widely applied by cartons/cardboards plants, printing and paper ...

Medium-sized Full Automatic Balers

UsageWidely used for compressing waste cardboards, cartons, paper, plastic film, straw etc. FeaturesPhotoelect...

Small-sized Full Automatic Balers with Cyclone for Packaging Plants

UsageSpecially used for recycling waste paper, cartons/cardboards trims/scraps etc. which are popular in packa...

Full Automatic Two Ram Balers

UsageSpecialized in recycling and compressing the waste paper, plastic film, fabric etc, convenient for storag...

  • Related Accessories

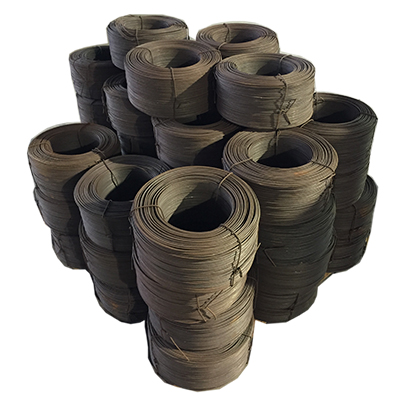

  • Iron Wires
    Iron Wires

    It is mainly used to strap bales from automatic horizontal balers, semi-automatic horizontal balers, vertical balers, et...

  • Semi-Automatic Strapping Machine
    Semi-Automatic Strapping Machine

    This machine suits for every type of PP strap, it heat immediately, electric saving function, accurate and substance for...

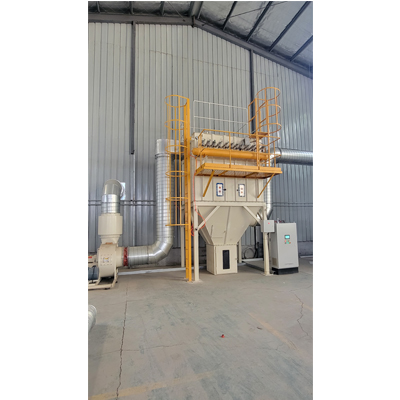

  • Dust Removal Device
