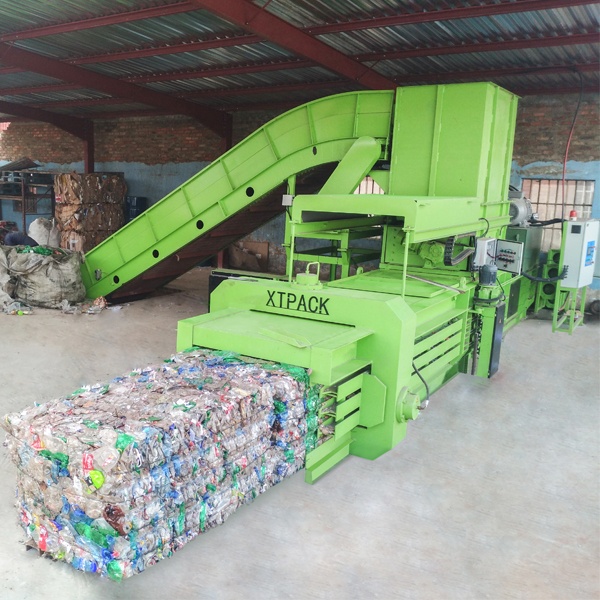

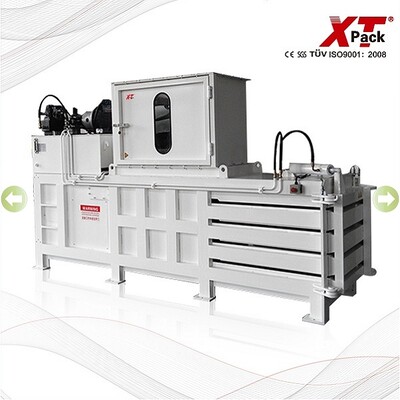

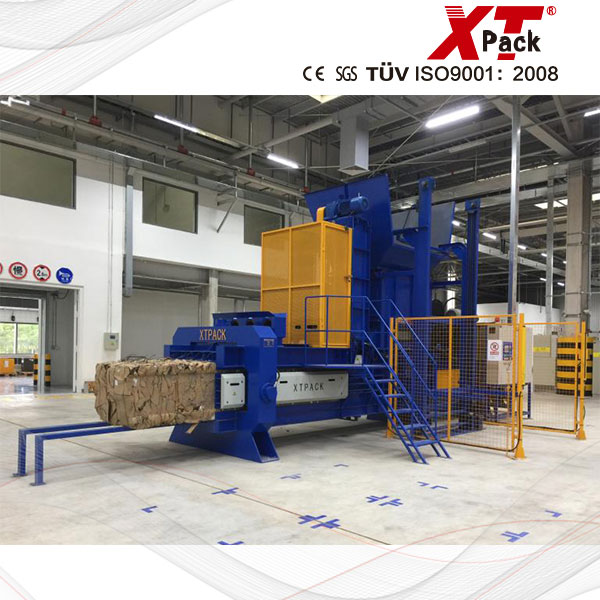

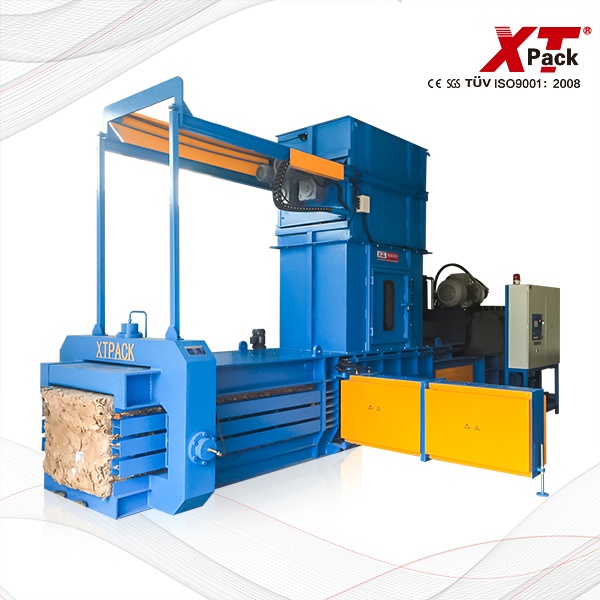

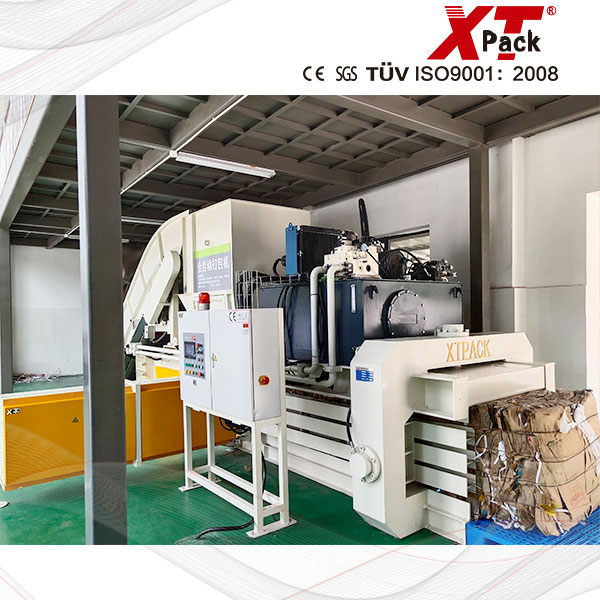

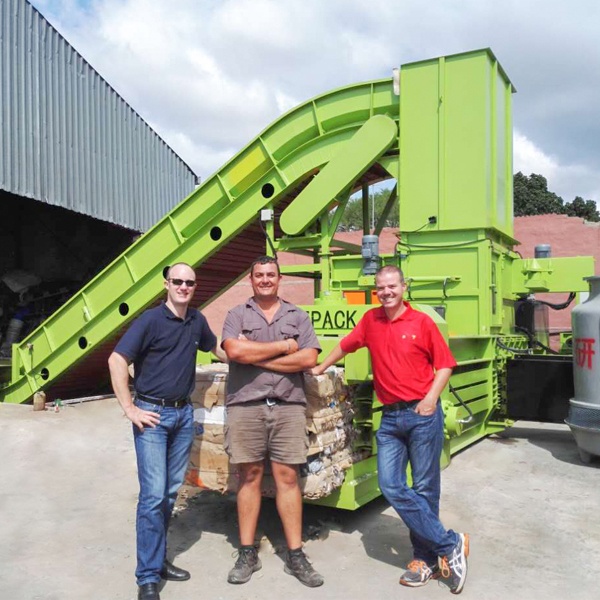

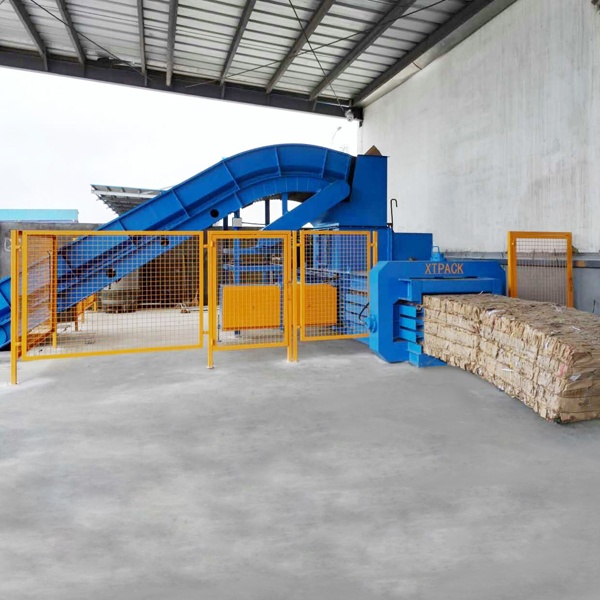

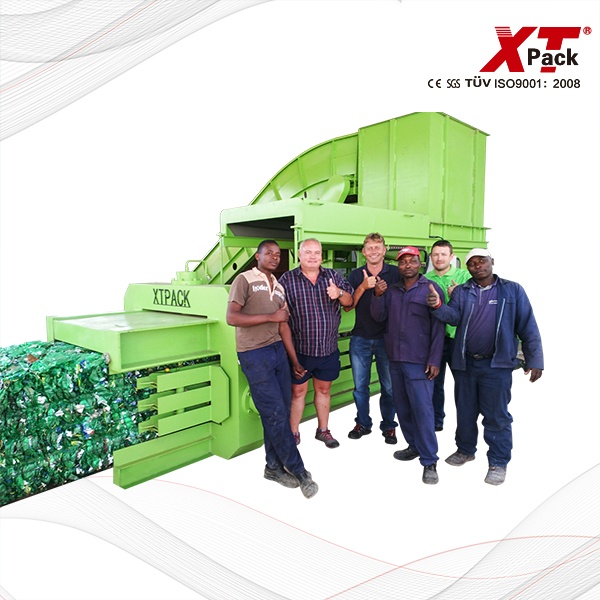

Usage of Medium-sized Full Automatic Balers
Widely used for compressing waste cardboard, cartons, paper, plastic film, straw etc.Features of Medium-sized Full Automatic Balers
- Photoelectric switch activates baler when charge box is full
- Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
- Particular anti-slide design of the machine makes nicer bales
- Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
- Equipped with rapid automatic tying system, easy for cleaning and maintaining
- Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
- Automatic tension system ensures “brick-like” bales on all loose materials
- Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
- Automatically detect and show the errors of the machine which improve the machine inspection efficiency
- International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
- The press heads are specially processed by planomiller, ensures the precise running of the ram
- Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
- The heavy duty machine body makes sure only flat ground is required by the installation
| Model | XTY-600W11075-30 | XTY-800W11075-50 | XTY-800W11075L-50 |
| Pressure | 60tons | 80tons | 80tons |
| Main Motor Power | 22kw | 37.5kw | 37.5kw |
| Cooling System | air cooler / water cooler | air cooler / water cooler | air cooler / water cooler |
| Cycle Time (unload) | 24s | 16s | 28s |
| Oil Reservoir | 1000L | 1100L | 1100L |
| Number of Belting | 4lines | 4lines | 4lines |
| Wire Size | Ø2.7-3.2 | Ø2.7-3.2 | Ø2.7-3.2 |
| Feed Opening Size (L*W) | 1600*1050mm | 1600*1050mm | 2400*1050mm |
| Chamber Size (L*W*H) | 2100*1100*750mm | 2100*1100*750mm | 2900*1100*750mm |
| Bale Size (L*W*H, L can be adjustable) | L*1100*750mm | L*1100*750mm | L*1100*750mm |
| Bale Density （OCC） | 400-500kgs/m3 | 420-500kgs/m3 | 420-500kgs/m3 |
| Throughput (30-60kgs/m3) | 3-7tons/h | 4-8tons/h | 5-9tons/h |
| Machine Weight | 13tons | 14tons | 15tons |
| Machine Overall Dimension | 7950*3900*3500mm | 8100*3900*3500mm | 9500*3900*3500mm |
| Tying | Horizontal Tying or Vertical Tying | ||

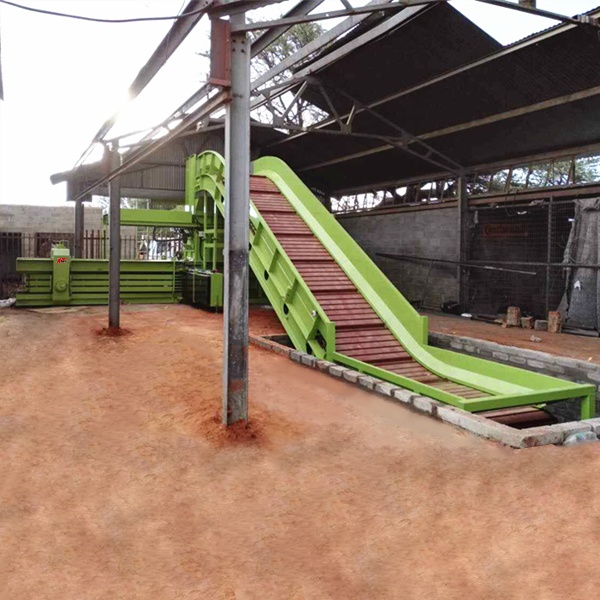

| Feeding Device | Conveyor | ||

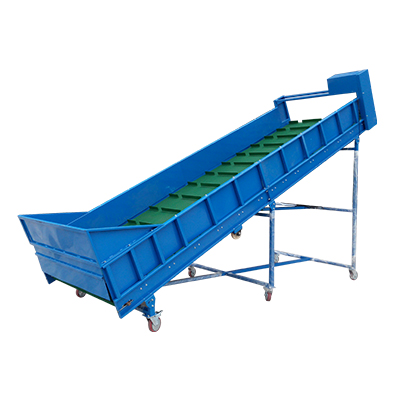

| Conveyor | |||
| Feeding Width | 1600mm | 1600mm | 2000mm |
| Speed | 12m/min | 12m/min | 12m/min |
| Power | 4/5.5kw | 4/5.5kw | 7.5kw |
| Weight | 5tons | 5tons | 6tons |
| Overall Dimension | 9000*2100*4500mm | 9000*2100*4500mm | 9000*2500*4500mm |
