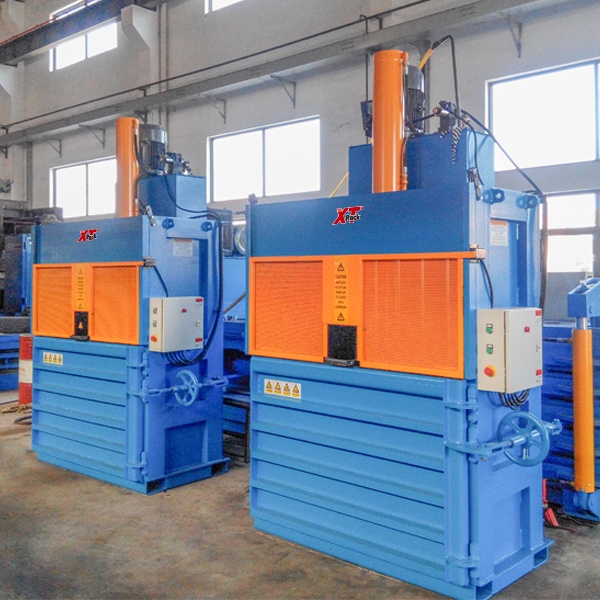

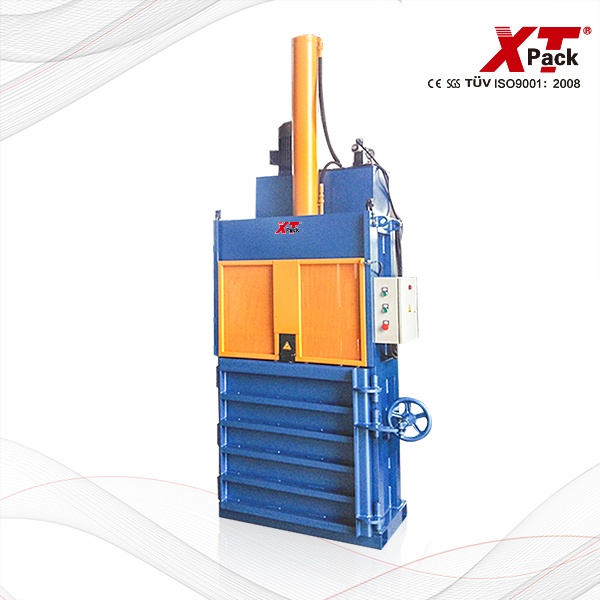

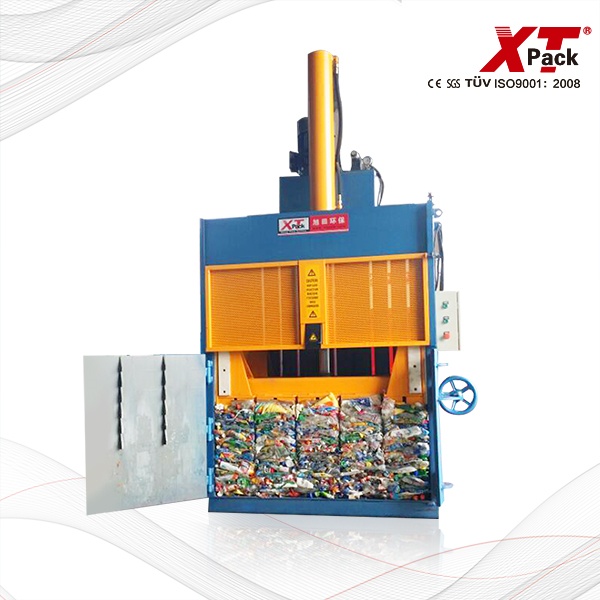

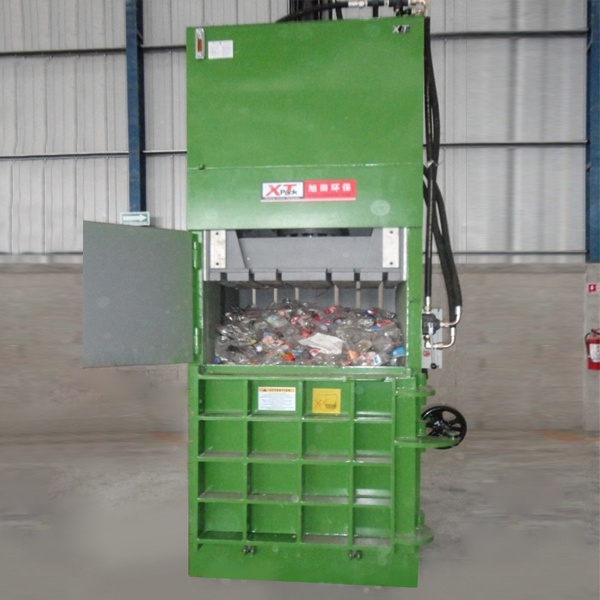

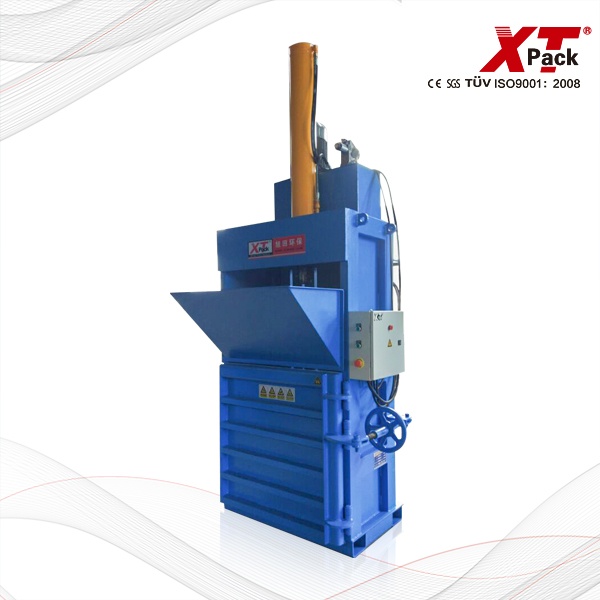

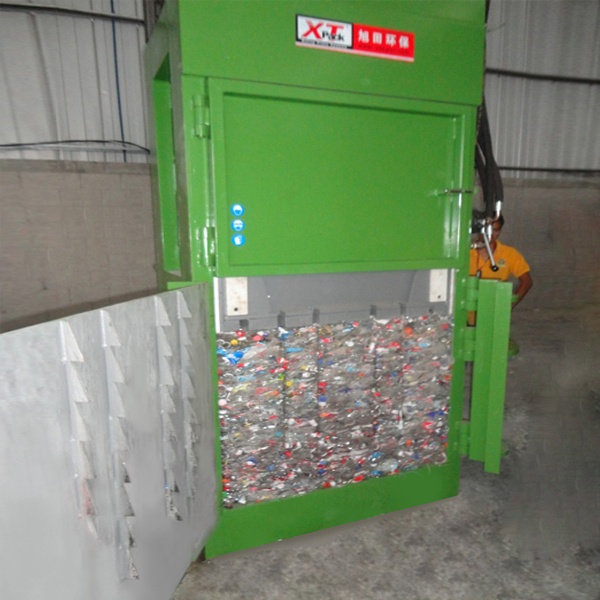

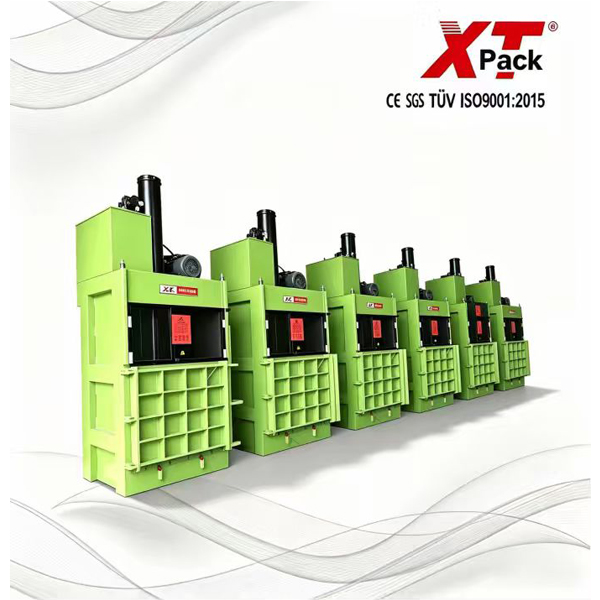

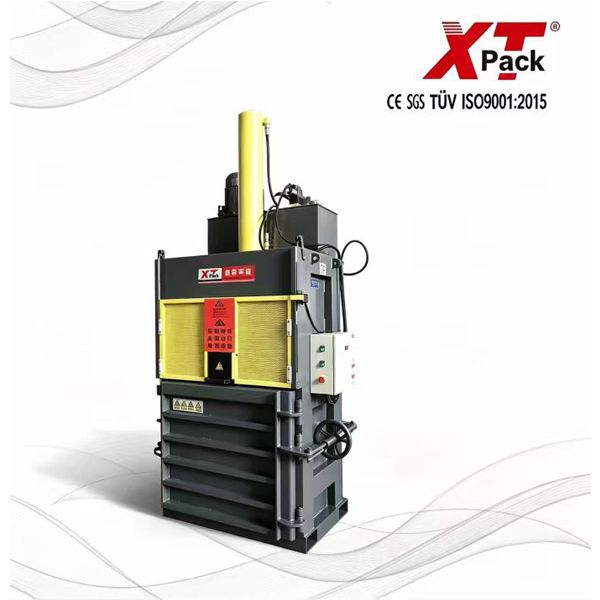

Usage of Cans/ PET Bottle Balers
Specially used for recycling the cans, PET bottles, oil tank etc.
Features of Cans/ PET Bottle Balers
Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
this plastic bottle baler machine is equipped with independent emergency stop for safe operation
Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
Special ram guides design makes the platen not slope because of uneven materials feedings during compression
Equipped with NOK seals that from Japan means longer lifespan of the seals
Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pump
Model | ||||
Pressure | 30tons | 40tons | 50tons | 80tons |
Feed Opening Size(L*H) | 800*500mm | 1000*500mm | 1100*500mm | 1200*500mm |
Baling Chamber Height | 1500mm | 1500mm | 1500mm | 1700mm |
Bale Size (L*W*H, H is adjustable) | 800*600*(200-1000)mm | 1000*600*(300-1000)mm | 1100*700*(300-1000)mm | 1200*800*(300-1200)mm |
Bale Weight | 30-120kgs | 60-180kgs | 90-270kgs | 200-380kgs |
Power | 5.5kw | 7.5kw | 7.5kw | 15kw |
Machine Weight | 1400kgs | 1700kgs | 1900kgs | 2700kgs |
Machine Overall Dimension | 1280*850*3300mm | 1480*1000*3400mm | 1600*1100*3500mm | 1700*1200*3900mm |
Why Choose XTpack Plastic Bottle Baler Machines?
Enhanced Safety: Automatic stop when gate opens, emergency stop buttons, and Euro/U.S. standard anti-rebound gate ensure operator protection.
Superior Durability & No Leakage: Equipped with Japanese NOK seals and A.M.C. pipe joints for extended lifespan and leak-free operation.
Optimal Performance & Efficiency: Direct motor-pump connection guarantees 100% concentricity, saving energy and prolonging pump life. Unique ram guide design prevents platen sloping.
Quick Ejection & Easy Operation: Automatic chain bale ejector speeds up the workflow and reduces labor intensity.
Customizable Solutions: Our R&D team can design a complete waste disposal system tailored to your factory layout and industry needs.
Comprehensive Support: Enjoy free installation, training, remote diagnosis, and professional after-sales service.
