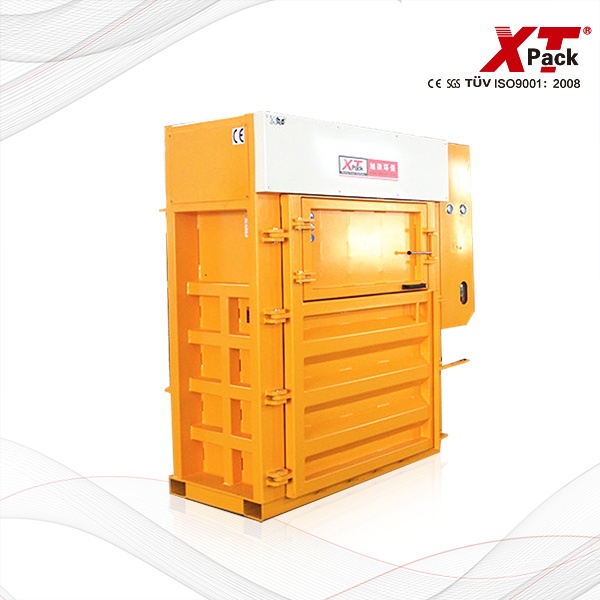

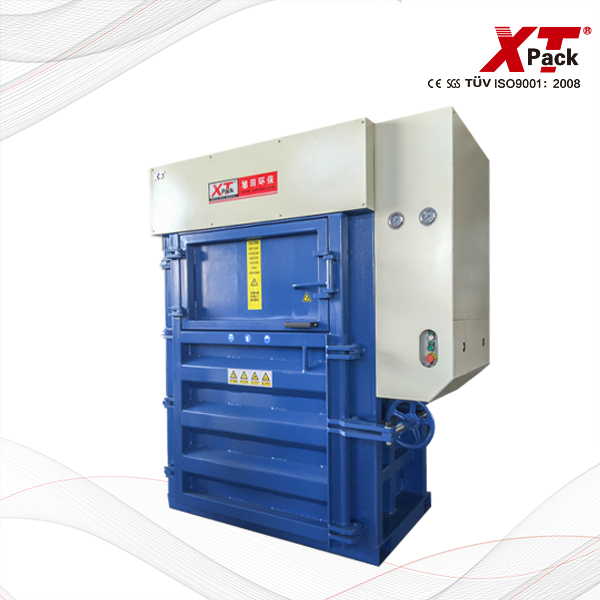

Usage of Cardboard Baler with Cross Cylinder
Specialized in compressing cardboards, paper, plastic scraps etc.Features of Cardboard Baler with Cross Cylinder
- Automatic bale ejector for quickly and easily ejecting the bales from the machine

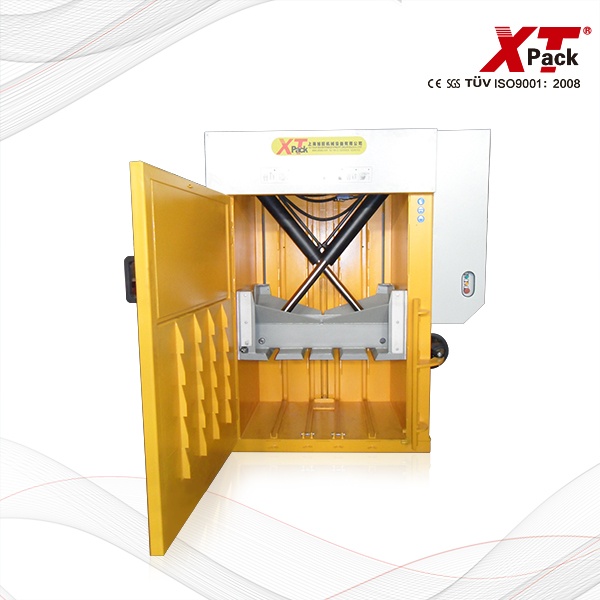

- Cross-cylinder design reduces the height of the balers, conveniently for transportation, installation and maintenance
- The ram will stop running downwards when the feeding gate is opened which ensures the safety of the operation
- Two hands are required for pressing the buttons when eject the bales out from the machine, ensures Equipped with independent emergency stop for safe operation the safety of the operator
- Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
- PLC control system ensures the uniform bale weight
- Special ram guides design makes the platen not slope because of uneven materials feedings during compression
- Equipped with NOK seals that from Japan means longer lifespan of the seals
- Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
- Equipped with cartridge valves that from USA, less space required for the installation
- Low noise design, ensures the noise no more than 70db
Model |
XTY-300LJ12080 |
XTY-500LJ12080 |
Pressure |
30tons |
50tons |
Feed Opening Size(L*H) |
1050*550mm |
1050*550mm |
Baling Chamber Height |
1600mm |
1700mm |
Bale Size(L*W*H,H is adjustable) |
1200*800*(500-1000)mm |
1200*800*(600-1100)mm |
Bale Weight |
200-400kgs |
300-500kgs |
Power |
4kw |
4/5.5kw |
Machine Weight |
2200kgs |
2800kgs |
Machine Overall Dimension |
1800*1400*2300mm |
1900*1500*2550mm |
