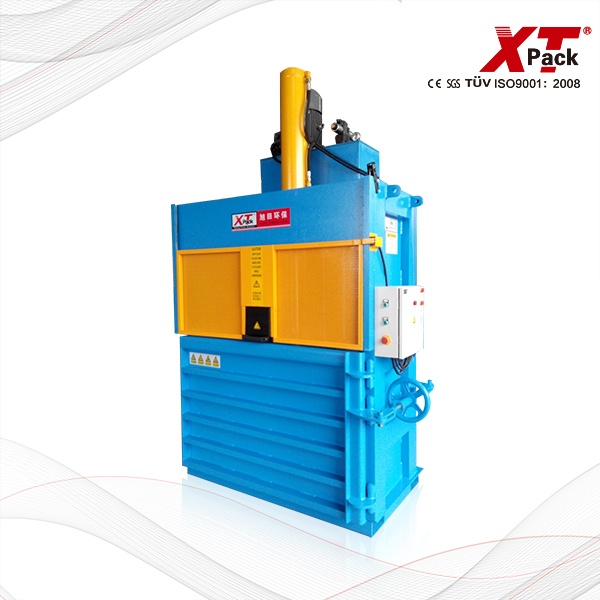

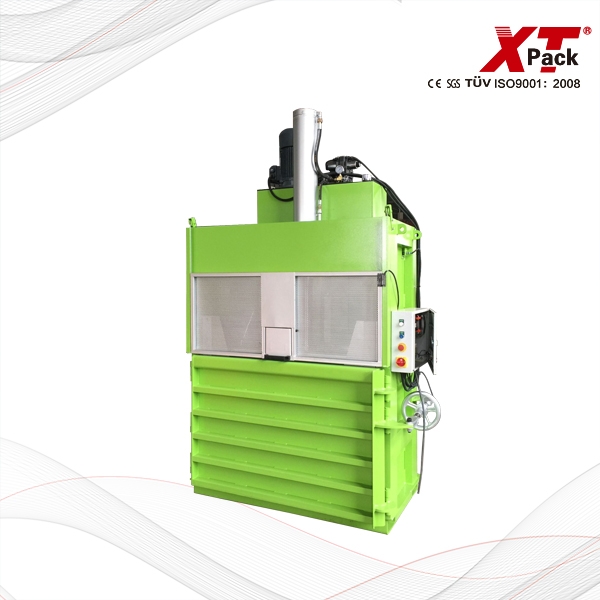

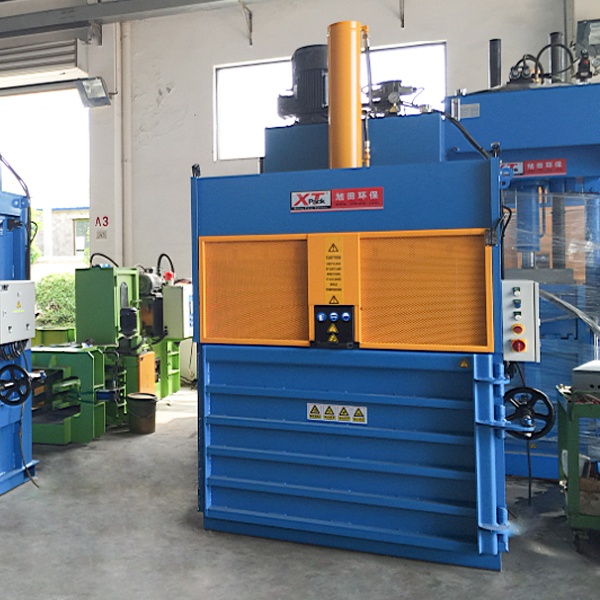

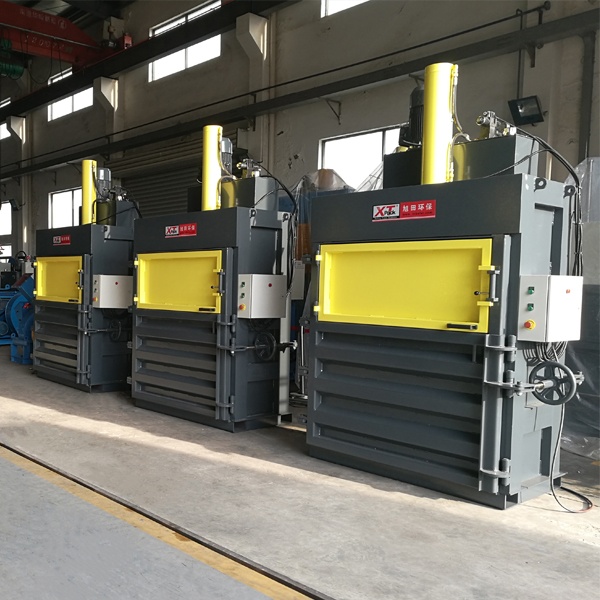

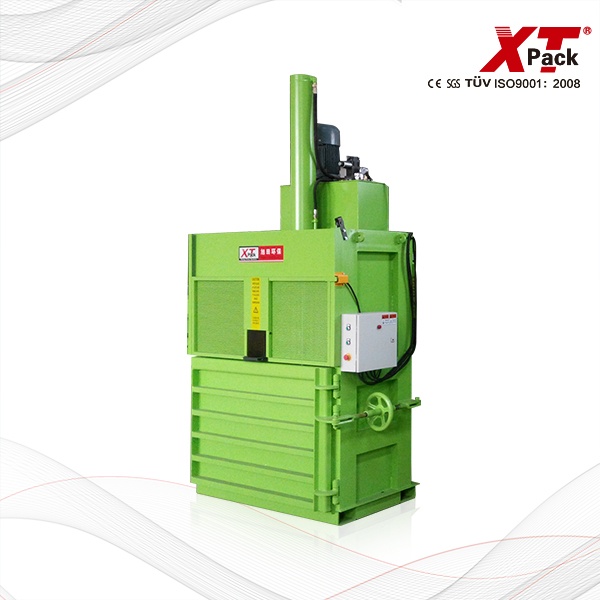

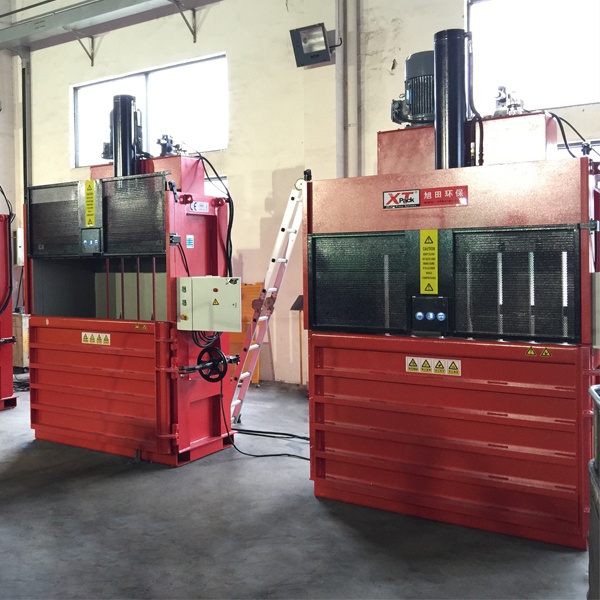

Paper/ Carton Balers

Usage of Paper/ Carton Balers

Specially designed for recycling waste cardboards, cartons and newspaper etc. with wide feed opening door.

Features of Paper/ Carton Balers

  • Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
  • Wide feed opening door lifts upwards automatically when the platen goes up
  • The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
  • Equipped with independent emergency stop for safe operation
  • Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
  • Special ram guides design makes the platen not slope because of uneven materials feedings during compression
  • Equipped with NOK seals that  from Japan means longer lifespan of the seals
  • Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
  • Equipped with superimposed valves that from Taiwan, , less space required for the installation
  • Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pump

Model

XTY-300LE11070

XTY-400LE12080

XTY-500LE15076

XTY-600LE180100

Pressure

30tons

40tons

50tons

60tons

Feed Opening Size (L*H)

1100*500mm

1200*500mm

1500*500mm

1800*550mm

Baling Chamber Height

1400mm

1500mm

1500mm

1600mm

Bale Size

(L*W*H, H is adjustable)

1100*700*

(500-900)mm

1200*800*

(600-1000)mm

1500*760mm*

(600-1000)mm

1800*1000*

(350-1050)mm

Bale Weight

150-250kgs

200-400kgs

300-500kgs

250-700kgs

Power

5.5kw

7.5kw

7.5kw

11kw

Machine Weight

1900kgs

2200kgs

2800kgs

3500kgs

Machine Overall Dimension

1500*1050*2900mm

1600*1150*3000mm

2000*1150*3100mm

2260*1350*3520mm

Contact now
