baler machines

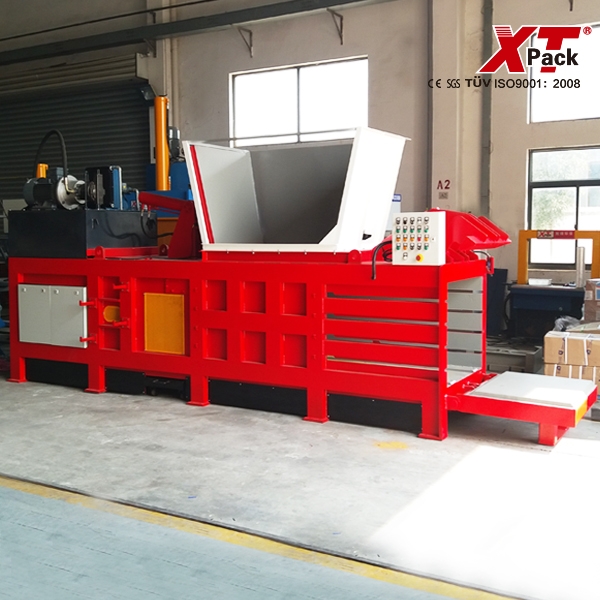

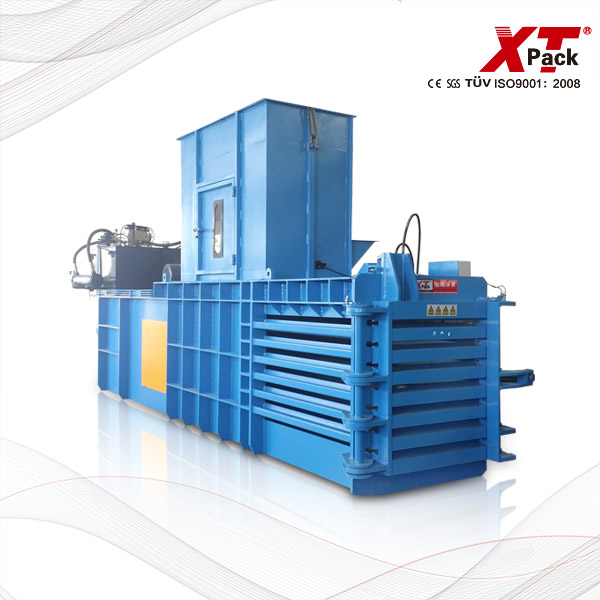

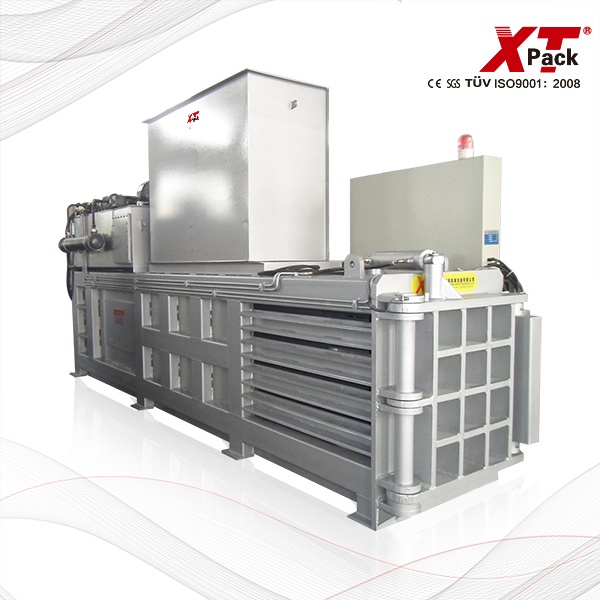

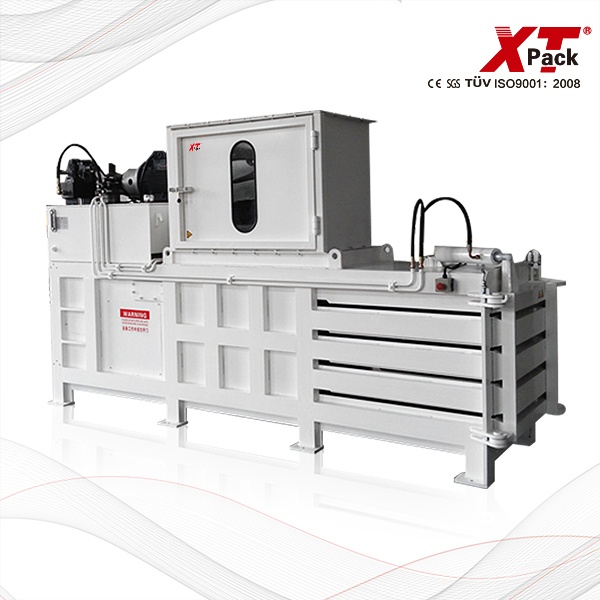

Large, Medium and Small sized Semi-Automatic Balers With Closed Gate

Usage of Large, Medium and Small sized Semi-Automatic Balers With Closed Gate

Specialized in recycling and compressing the loose materials like plastic film, PET bottles, plastic pallets waste paper, cartons, cardboards trims/scraps, etc.

Features of Large, Medium and Small sized Semi-Automatic Balers With Closed Gate

  • Heavy duty close-gate design for more tighter bales
  • Hydraulic locked gate ensures more convenient operation
  • Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
  • Particular anti-slide design of the machine makes nicer bales
  • Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
  • The press heads are specially processed by planomiller, ensures the precise running of the ram
  • Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine
  • The heavy duty machine body makes sure only flat ground is required by the installation

Model

XTY-300WB7070

XTY-400WB7280

XTY-600WB10080

XTY-1000WB11085

XTY-1000WB110110

Pressure

30tons

40tons

60tons

100tons

100tons

Main Motor Power

11kw

11kw

15kw

30kw

30kw

Cooling System

N/A

air cooler/water cooler

air cooler/water cooler

air cooler/water cooler

air cooler/water cooler

Cycle Time (unload)

27s

19s

23s

36s

42s

Oil Reservoir

240L

240L

380L

1460L

1460L

Number of Belting

3lines

4lines

4lines

4lines

5lines

Wire Size

Ø2.4-2.7

Ø2.4-2.7

Ø2.7-3.0

Ø3.0-3.2

Ø3.0-3.2

Feed Opening Size (L*W)

700*690mm

1000*700mm

1200*980mm

1400*1050mm

2000*1050mm

Chamber Size (L*W*H)

1700*690*690mm

2200*700*780mm

2400*980*780mm

3000*1050*830mm

3800*1050*1050mm

Bale Size (L*W*H)

900*700*700mm

1000*720*800mm

1000*1000*800mm

1300*1100*850mm

1600*1100*1100mm

Bale Density (OCC)

400-500kgs/m3

400-500kgs/m3

450-550kgs/m3

500-600kgs/m3

500-600kgs/m3

Throughput
(approx./ depend on
the raw material density
and the skill of the operators)

0.5-1ton/h

0.5-1ton/h

1-2tons/h

1.5-3tons/h

2-6tons/h

Machine Weight

4tons

4tons

5.2tons

12tons

18tons

Machine Overall Dimension

4200*1100*1900mm

5500*1100*2000mm

6100*1400*2000mm

7450*1600*2300mm

9400*1600*3500mm

Feeding Device

cyclone / beltconveyor

cyclone /beltconveyor

cyclone /ironconveyor

ironconveyor

ironconveyor

Conveyor






Feeding Width

600mm

1000mm

1000

1300

1600mm

Speed

12m/min

12m/min

12m/min

12m/min

12m/min

Power

1.1kw

1.5kw

4kw

5.5kw

5.5kw

Weight

1tons

1.2tons

5tons

7tons

7tons

Overall Dimension

4500*800*2000mm

5000*1200*2500mm

9000*1300*3000mm

9700*1900*2900

10500*1950*3200mm

Model

XFB125

XFB160

XFB200

Pressure

125tons

160tons

200tons

Main Motor Power

30kw

37kw

45kw

Cooling System

Water cooler

Water cooler

Water cooler

Oil Reservoir

1460L

1460L

1460L

Number of Belting

5lines

7lines

7lines

Feed Opening Size (L*W)

2200*1100mm

2200*1100mm

2200*1100mm

Chamber Size (L*W*H)

4000*1100*1250mm

4200*1100*1250mm

4200*1100*1250mm

Bale Size (L*W*H)

(200-1700)1100*1250mm

(200-1700)1100*1250mm

(200-1700)1100*1250mm

Bale Density (OCC)

520-620kgs/m3

550-650kgs/m3

580-680kgs/m3

Throughput
(approx./ depend
on the raw material density
and the skill of the operators)

3-6tons/h

4-7tons/h

5-8tons/h

Machine Weight

18tons

23tons

27tons

Machine Overall Dimension

9800*1600*3200mm

9850*1600*3200mm

9950*1600*3200mm

Feeding Device

 ironconveyor

 ironconveyor

 ironconveyor

Feeding Width

1600mm

1600mm

1800mm

Speed

12m/min

12m/min

12m/min

Power

5.5kw

5.5kw

7.5kw

Weight

8tons

8tons

9tons

Overall Dimension

10000*2200*3200mm

10000*2200*3200mm

10000*2400*3200mm
