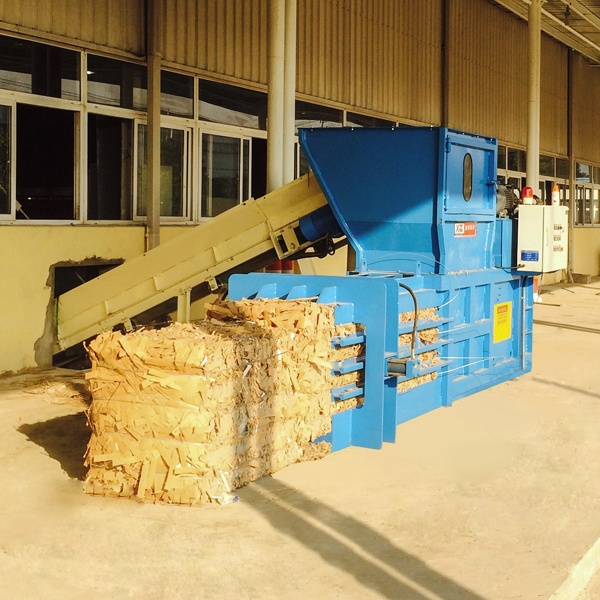

Usage of Semi-Automatic Balers With Open Gate
Widely applied by cartons/cardboards plants, printing and paper factories etc. for recycling waste cardboards/cartons trims, paper scraps etc. Our semi automatic waste baler systems provide a cost-effective way to manage large volumes of refuse.
Features of Semi-Automatic Balers With Open Gate
Open-end design for conveniently ejecting the bales out

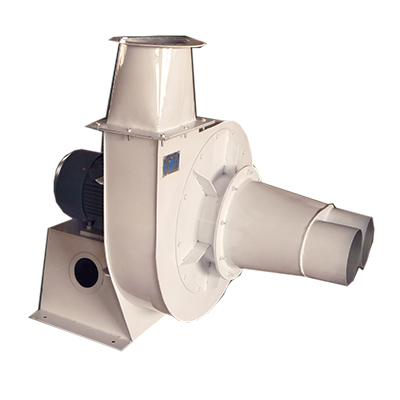

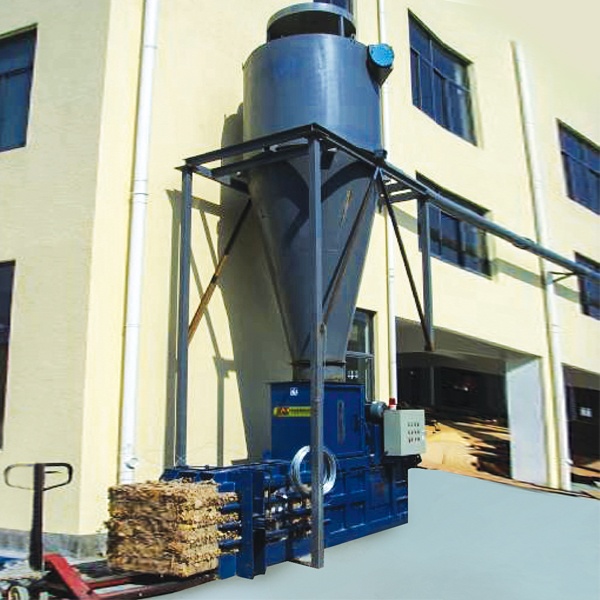

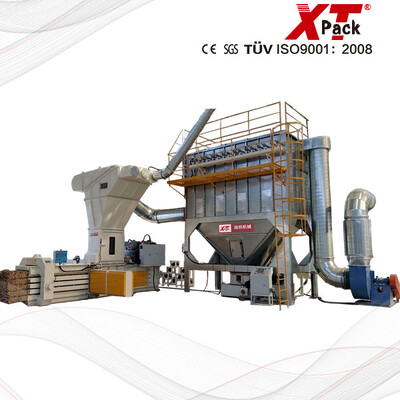

Powerful cyclone is optional for rapid sucking scraps/trims from the corrugation production line
Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
Particular anti-slide design of the machine makes nicer bales

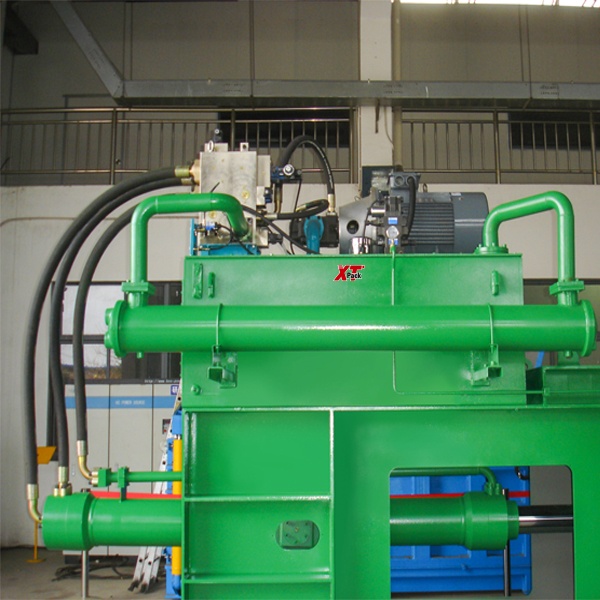

Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
The press heads are specially processed by planomiller, ensures the precise running of the ram
Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine
The heavy duty semi automatic cardboard baler body makes sure only flat ground is required by the installation

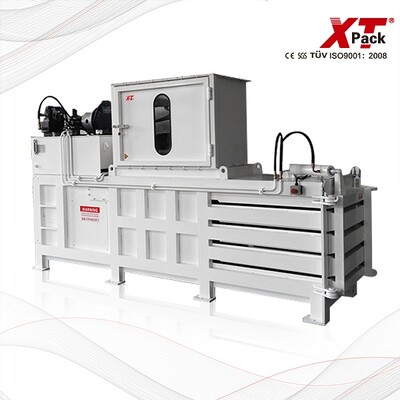

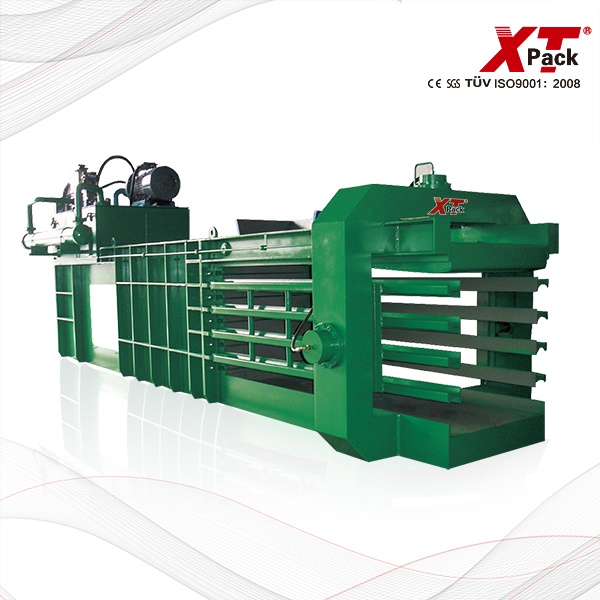

| Machine Type | Semi-Automatic Baler With Closed End | Semi-Automatic Baler | |||
| Model | XTY-300WB7070 | XTY-400WB7280 | XTY-600WB10080 | XTY-400WS7280 | XTY-1000WS110125-75 |
| Pressure | 30tons | 40tons | 60tons | 40tons | 100tons |
| Main Motor Power | 11kW | 11kW | 18.5kW | 11kW | 55kW |
| Cooling System | N/A | Air cooler/water cooler | Air cooled/water cooler | N/A | Air cooler/water cooler |
| Cycle Time(Unload) | 27s | 19s | 18s | 20s | 23s |
| Oil Reservoir | 240L | 240L | 550L | 240L | 1800L |
| Number of Belting | 3lines | 4lines | 4lines | 4lines | 5lines |
| Wire Size | Ø2.4-2.7 | Ø2.4-2.7 | Ø2.4-2.7 | Ø2.4-2.7 | Ø3.0-3.2 |
| Feeding Opening Size(L×W) | 700×690mm | 1000×700mm | 1380×980mm | 1000×690mm | 2080×1076mm |
| Chamber Size(L×W×H) | 1700×690×690mm | 2200×700×780mm | 2400×980×780mm | 1200×720×780mm | 2400×1076×1250mm |
| Bale Size(L×W×H, L can be adjustable) | 900×700×700mm | 1000×720×800mm | 1000×1000×800mm | L×720×800mm | L×1100×1250mm |
| Bale Density(OCC) | 400-500kg/m³ | 400-500kg/m³ | 450-580kg/m³ | 350-450kg/m³ | 400-500kg/m³ |
| Throughput | 0.5-1ton/h | 0.5-1ton/h | 1-2ton/h | 0.5-1ton/h | 5-8tons/h |
| Machine Weight | 4tons | 4.5tons | 5.2tons | 5tons | 16.5tons |
| Machine Overall Dimension | 4200×1100×1900mm | 5500×1100×2000mm | 6100×1400×2000mm | 4800×1500×2000mm | 9100×2500×3500mm |
| Feeding Device | Cyclone/belt conveyor | Cyclone/belt conveyor | Cyclone/belt conveyor | Cyclone/belt conveyor | Iron conveyor |
