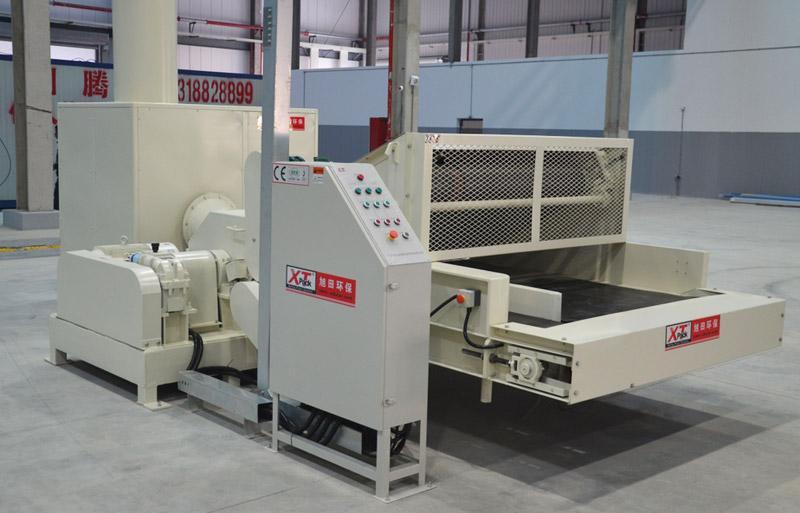

Cardboard & Paper Core Shredder
Usage of Cardboard & Paper Core Shredder
Specially used for shredding waste cardboard, paper, box and paper core etc
Features of Cardboard & Paper Core Shredder
-
Equip with 10mm thickness rubber belt with high strength。
-
The flatten belt auto adjusted by the feeding board thickness, in the meantime, maximum thickness is set, when feeding thickness too much or any person fell onto belt, machine immediately stop.
-
Equipped with gear reducer of strong torque force.
-
Equipped with 52pieces of strong white-steel blades, durable and convenient for changing.
-
Each blade has two edges, if one edge wore, then install reversed edge.
-
Safety design to protect operators.
-
Equip with German technology
Specifications of Cardboard & Paper Core Shredder
Model
|
XPRS-1800
|
Maximum cardboard Feeding Width
|
1450mm
|
Maximum Paper Core Diameter
|
120mm
|
Maximum Paper Core Thickness
|
20mm
|
Maximum Cardboard Thickness
|
80mm
|
Blade shaft rolling speed
|
480r/min
|
Belt Delivery speed
|
35m/min
|
Paper Conveying Motor Power
|
2.2kw
|
Waste Compressing Conveyor Motor Power
|
1.5kw
|
Paper Shredding Motor Power
|
22kw
|
Shredding Fan Power
|
18.5kw
|
Handling Capacity
|
2000tons/h
|
Machine Weight
|
3500kgs
|
Machine Size
|
6600*2900*1700mm
|
