Usage of Baling And Bagging Machines
Specialized designed for baling and bagging wood shavings/ships, alfalfa, waste fabric, cotton yarn and textile scraps etc. Widely used by laboratories, the pets materials plants, clothes recycling plants etc.
Features of Baling And Bagging Machines
Equipped with weighing device, ensures uniform bale weight
Only one press button required for the whole pressing and ejecting system, for conveniently operation
One time material feeding, improves the working efficiency
Equipped with Omron brand of PLC, makes sure safety interlock
| Machine Type |

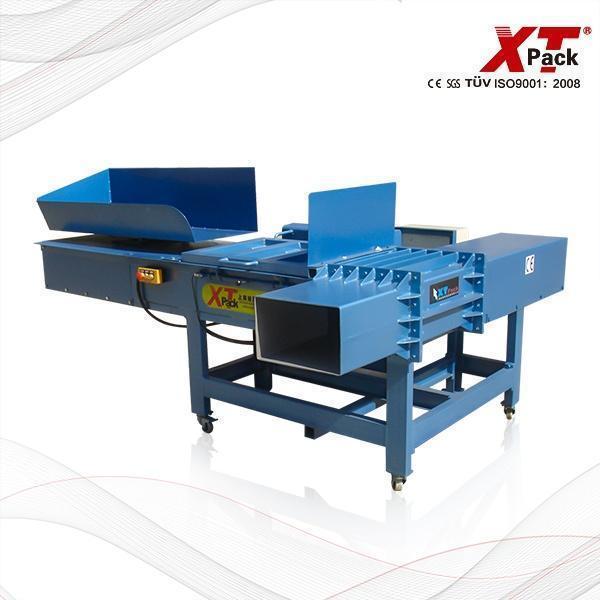

Manual Feeding Baling and Bagging Machine |

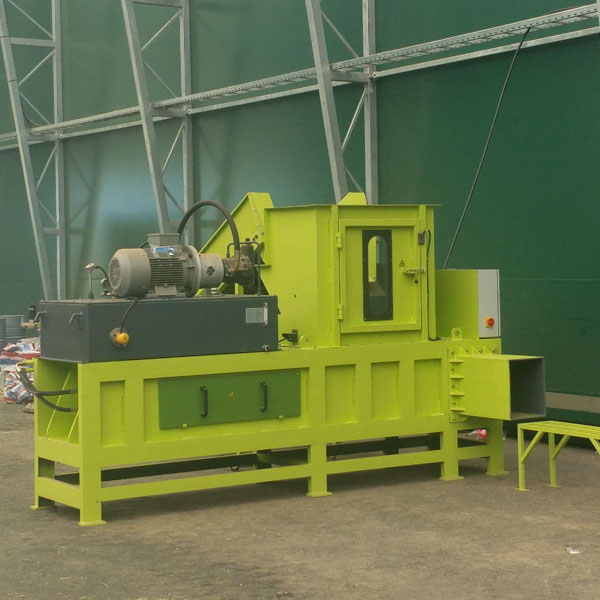

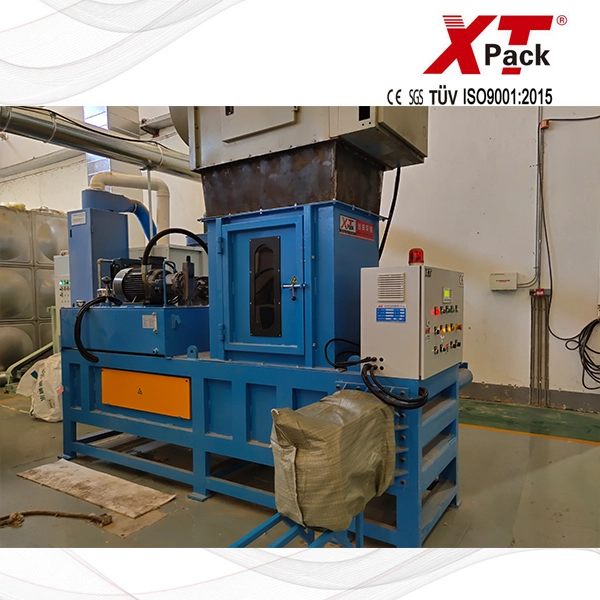

Automatic Baling and Bagging Machine | |||
| ITEMS | XTB-100 | XTB-200 | XTB-250 | XTB-300 | XTB-400 |
| Feed opening size (L*W) | 500*300mm | 850*550mm | 1000*550mm | 1200*600mm | 1000*650mm |
| Bale size (L*W*H) | 300*90*200mm | 550*380*200mm | 550*400*250mm | 600*450*250mm | 650*300*400mm |

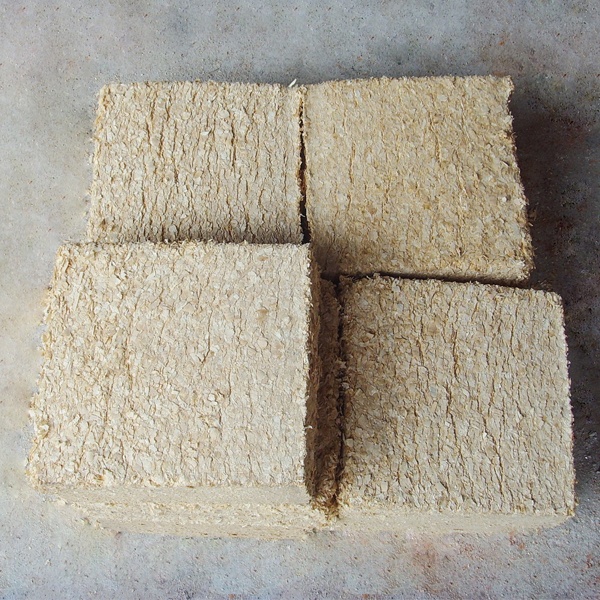

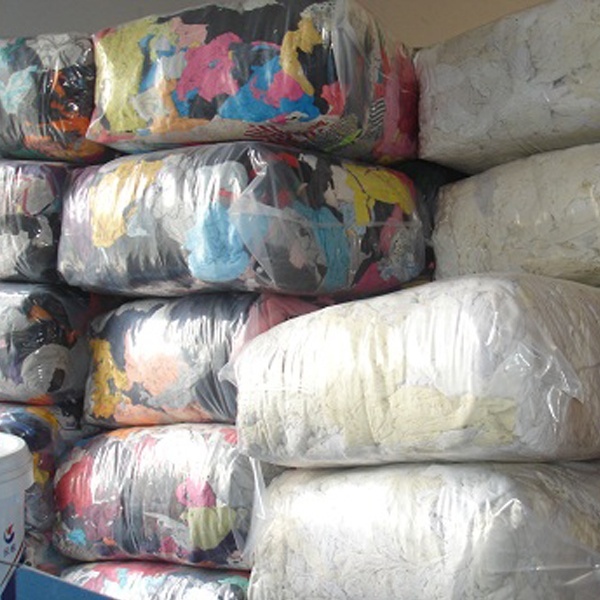

| Bale weight | 1kgs (sawdust) | 20kgs (fabric) | 25kgs (fabric) | 30kgs (fabric) | 40-50kgs |
| Power | 5.5kw | 7.5kw | 7.5kw | 11kw | 11kw |
| Machine weight | 850kgs | 1000kgs | 1100kgs | 1200kgs | 3000kgs |
| Machine overall dimension | 1600*1300*1500mm | 2600*2200*1500mm | 3000*2300*1500mm | 3500*2500*1500mm | 3300*3600*2000mm |
