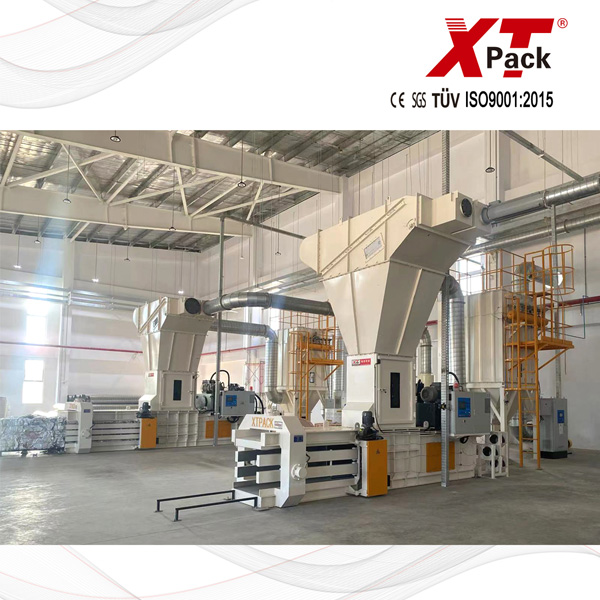

Usage of Small-sized Full Automatic Balers with Cyclone for Packaging Plants
Specially used for recycling waste paper, cartons/cardboards trims/scraps etc. which are popular in packaging/corrugation industrial, paper/ printing plants etc.Features of Small-sized Full Automatic Balers with Cyclone for Packaging Plants

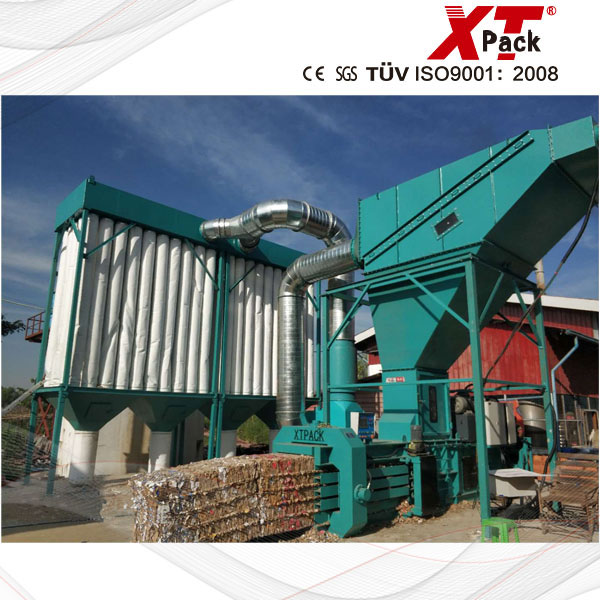

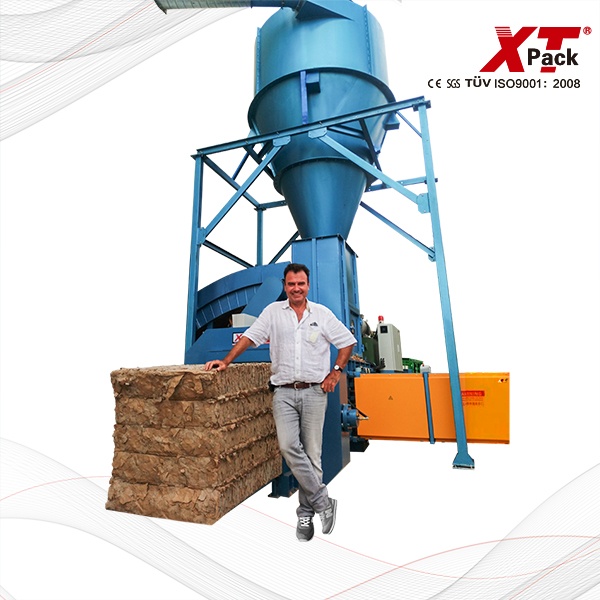

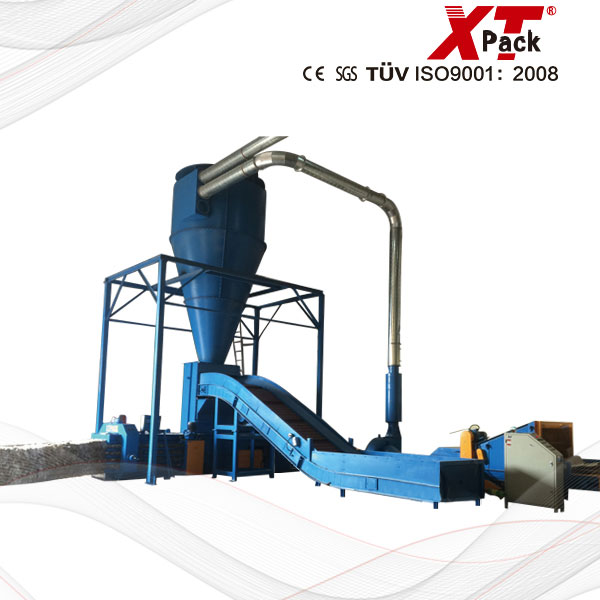

- Powerful cyclone is optional for rapid sucking trims/scraps from the corrugation production line
- Photoelectric switch activates baler when charge box is full
- Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
- Particular anti-slide design of the machine makes nicer bales
- Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
- Equipped with rapid automatic tying system, easy for cleaning and maintaining
- Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
- Automatic tension system ensures “brick-like” bales on all loose materials
- Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
- Automatically detect and show the errors of the machine which improve the machine inspection efficiency
- International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
- The press heads are specially processed by planomiller, ensures the precise running of the ram
- Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
- Theheavy duty machine body makes sure only flat ground is required by the installation
|
Model |
||||
|
Pressure |
20tons |
40tons/60tons |
40tons |
60tons |
|
Main Motor Power |
11kw |
15kw/18.5kw |
15kw |
18.5kw |
|
Cooling System |
air cooler/water cooler |
air cooler/water cooler |
air cooler/water cooler |
air cooler/water cooler |
|
Cycle Time (unload) |
19s |
17s/24s |
20s |
16s |
|
Oil Reservoir |
280L |
540L |
540L |
600L |
|
Number of Belting |
3lines |
3lines/4lines |
4lines |
4lines |
|
Wire Size |
Ø2.4-3.2 |
Ø2.4-3.2 |
Ø2.4-3.2 |
Ø2.4-3.2 |
|
Feed Opening Size (L*W) |
625*480mm |
1200*720mm |
1200*690mm |
1200*720mm |
|
Chamber Size (L*W*H) |
900*500*500mm |
1600*750*750mm 2100*750*750mm |
1600*720*800mm |
1600*750*850mm |
|
Bale Size (L*W*H, L can be adjustable) |
L*500*500mm |
L*750*750mm |
L*720*800mm |
L*750*850mm |
|
Bale Density（OCC） |
350-450kgs/m3 |
350-450kgs/m3 |
350-450kgs/m3 |
380-480kgs/m3 |
|
Throughput (30-60kgs/m3) |
1-1.5tons/h |
1.5-3tons/h 2-3.5tons/h |
1.5-3tons/h |
2.5-5tons/h |
|
Machine Weight |
3tons |
7tons/8tons |
7tons |
8tons |
|
Machine Overall Dimension |
3600*2500*1650mm |
5950*3200*2500mm |
5950*3200*2500mm |
6100*3250*2500mm |
|
Feeding Device（Optional） |
Cyclone / conveyor |
Cyclone / conveyor |
Cyclone / conveyor |
Cyclone / conveyor |
