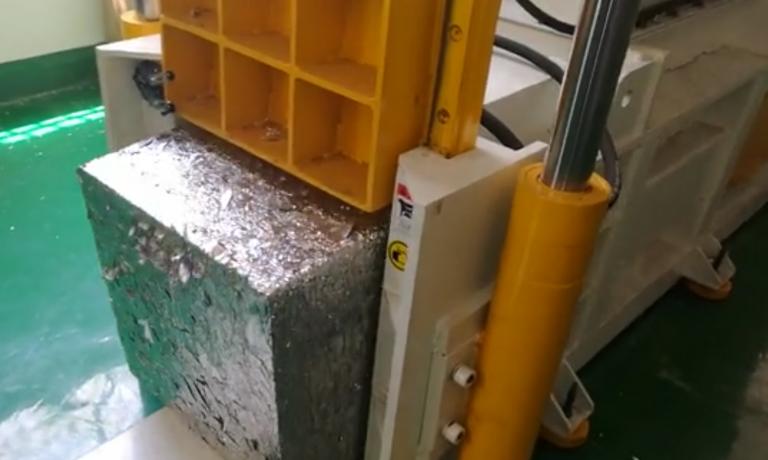

It is a hydraulic briquetting press machine, specially designed for high-density compaction briquetting of light, fluffy waste aluminum foil materials, including aluminum foil slitting trimmings, waste food-grade aluminum foil, crushed lithium battery aluminum current collectors, pharmaceutical aluminum foil, and aluminum-plastic composite films.
The briquetting press machine compresses bulky, low-density loose aluminum foil into high density aluminum bales, facilitating storage, transportation, and smelting recycling of aluminum metal.
Picture | Model | XTY-YK120 |
| Pressure | 120tons |
Power | 30kw | |
Feeding Opening Size | 1500*460mm | |
Bale Size | 500*500*(150-500)mm | |
Bale Density（OCC） | About 600kg/m3 | |
Throughput | 5-6 ton/day | |
Door Opening Method | lift door | |
Machine Overall Dimension | 6900*900*2500 | |
Cooling System | water-cooling | |
Hydraulic Pressure | 25mpa |
