XFB125 Large, Medium and Small sized Semi-Automatic Balers With Closed Gate

XFB125 Large, Medium and Small sized Semi-Automatic Balers With Closed Gate

High pressure combination with heavy duty close gate makes tighter bales even the materials with high elasticity can be easily handled. Special slide prevention design ensures the bales with more beautiful shapes.

Pressure:125tons
Main Motor Power:30kw
Cooling System:water cooler
Oil Reservoir:1460L
Number of Belting:5lines
Feed Opening Size (L*W):2200*1100mm
Chamber Size (L*W*H):4000*1100*1250mm
Bale Size (L*W*H, L can be adjustable):(200-1700)*1000*1250mm
Bale Density（OCC）:520-620kgs/m3
Throughput (30-60kgs/m3):3-6tons/h
Machine Weight:18tons
Machine Overall Dimension:9800*1600*3200mm
Feeding Device:iron conveyor
Feeding Width:1600
Speed:12m/min
Power:5.5kw
Weight:8tons
Overall Dimension:10000*2200*3200mm

XFB125 Large, Medium and Small sized Semi-Automatic Balers With Closed Gate Gallery

XFB125 Large, Medium and Small sized Semi-Automatic Balers With Closed Gate Video

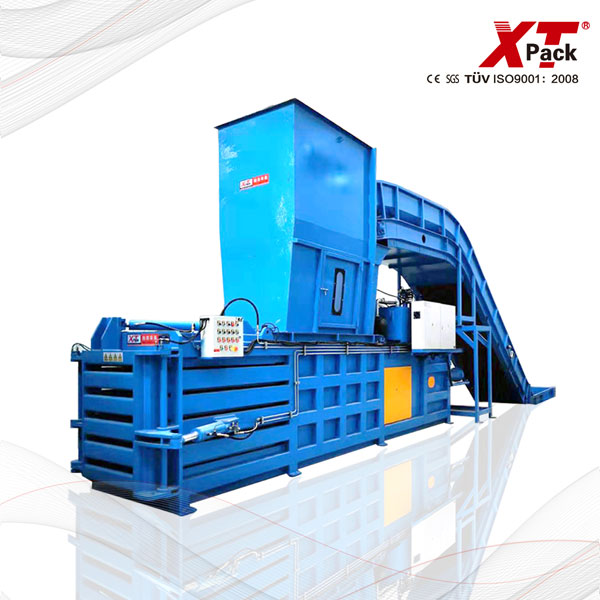

  • closed-door-horizontal-baler-3.jpg

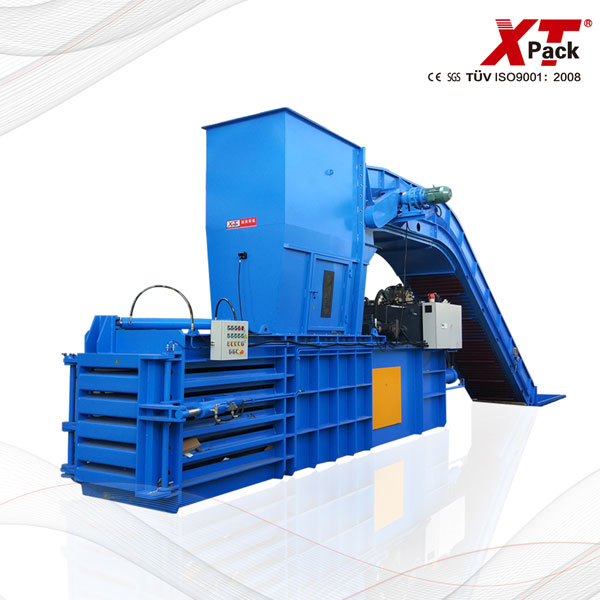

  • closed-door-horizontal-baler-4.jpg

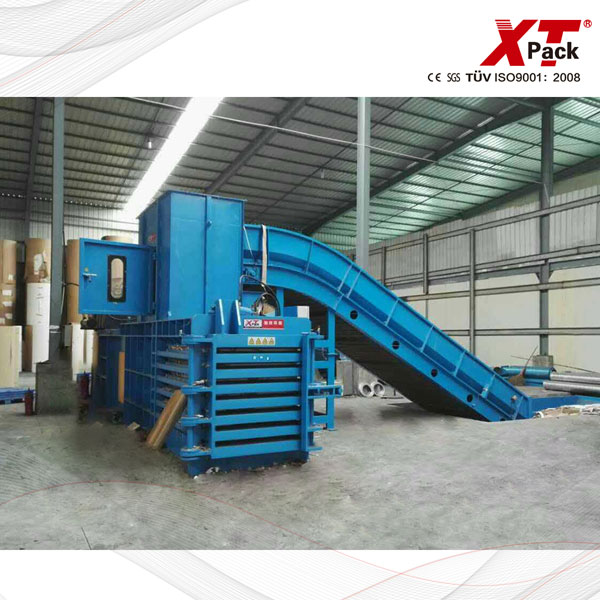

  • closed-end-baler.jpg

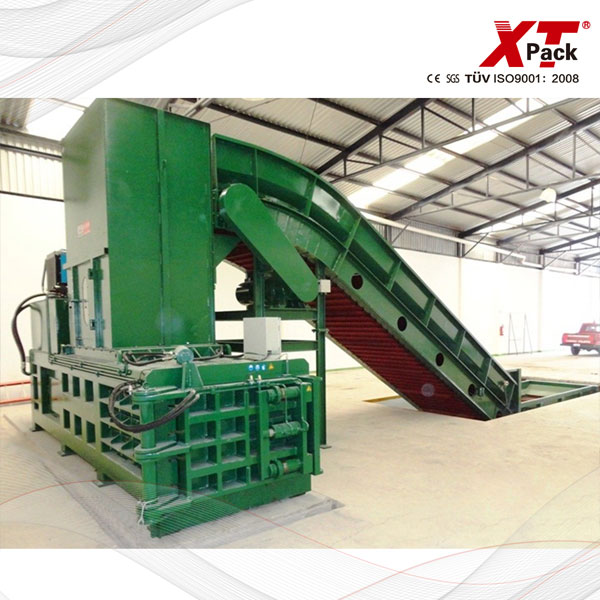

  • closed-end-baler-2.jpg

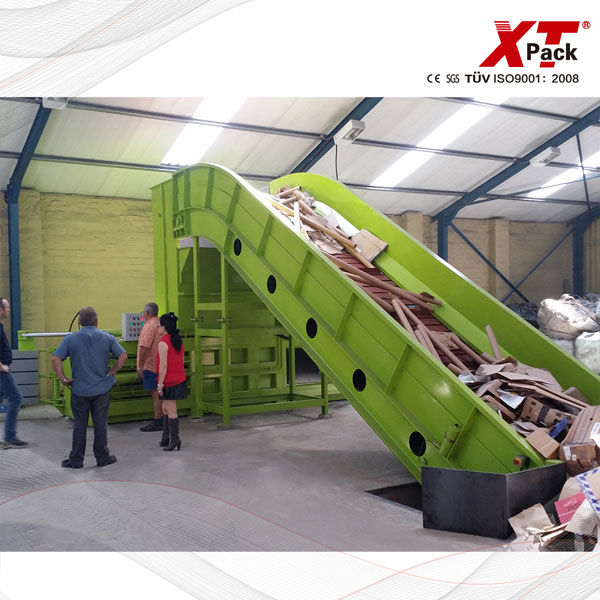

  • closed-end-baler-3.jpg

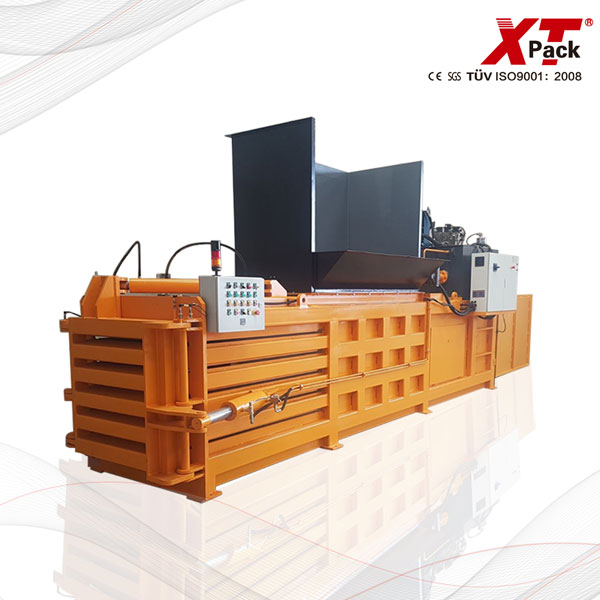

  • closed-end-horizontal-baler-3.jpg
