XTY-1000WB110110 Large, Medium and Small sized Semi-Automatic Balers With Closed Gate

XTY-1000WB110110 Large, Medium and Small sized Semi-Automatic Balers With Closed Gate

Unique trunnion-mounted frame and ball-end joint design are used in the main cylinder to help avoid the torque on the rod which makes the lifespan of the seals longer.The press head processed by planomillerguarantees the accurate running of themachine.

Pressure:100tons
Main Motor Power:30kw
Cooling System:air cooler/water cooler
Cycle Time (unload):42s
Oil Reservoir:1460L
Number of Belting:5lines
Wire Size:Ø3.0-3.2
Feed Opening Size (L*W):2000*1050mm
Chamber Size (L*W*H):3800*1050*1050mm
Bale Size (L*W*H, L can be adjustable):1600*1100*1100mm
Bale Density（OCC）:500-600kgs/m3
Throughput (30-60kgs/m3):2-6tons/h
Machine Weight:18tons
Machine Overall Dimension:9400*1600*3500mm
Feeding Device:ironconveyor
Feeding Width:1600mm
Speed:12m/min
Power:5.5kw
Weight:7tons
Overall Dimension:10500*1950*3200mm

XTY-1000WB110110 Large, Medium and Small sized Semi-Automatic Balers With Closed Gate Gallery

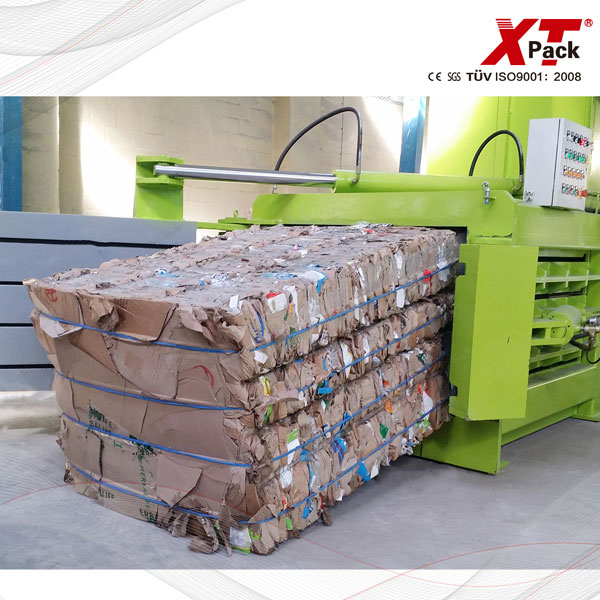

closed door horizontal baler
closed end horizontal baler
closed end horizontal baler
closed end horizontal baler
closed end horizontal baler
closed end horizontal baler
closed door horizontal baler
closed door horizontal baler
closed door horizontal baler
closed end baler
closed end baler
closed end baler
closed door baler

Small Sized Full Automatic Baler
